Glazing for BMW 1500-2000CS 1500 (1964)

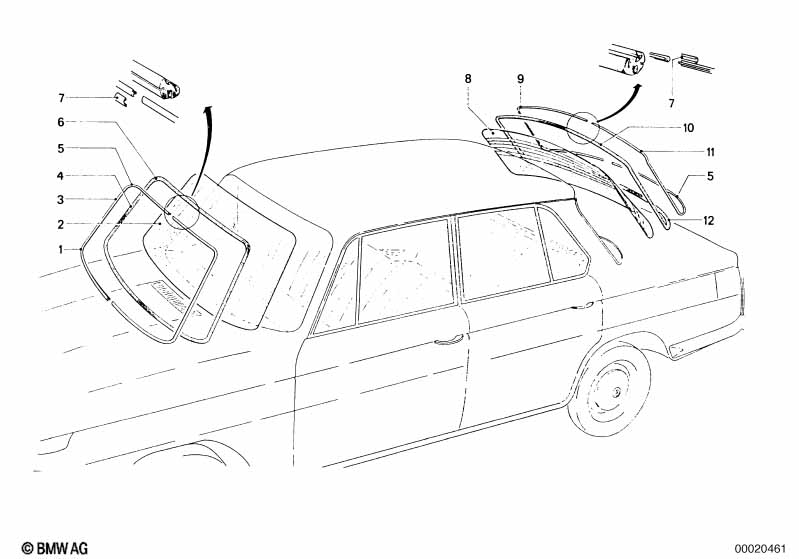

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1964.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative frame left | 1 | 02/1962 | 08/1968 | 51317640110 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Sealing frame | X | 02/1962 | 08/1968 | 51317640104 | $149.94 | Shop at ECS Tuning | |||
| 02 | Green windshield | 1 | 51311813707 | ENDED | Shop at ECS Tuning | |||||
| 02 | Front windshield clear | 1 | 51319558350 | $290.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Decorative frame right | 1 | 02/1962 | 08/1968 | 51317640111 | $108.38 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Sealing frame | X | 02/1962 | 08/1968 | 51317640104 | $149.94 | Shop at ECS Tuning | |||
| 04 | Sealing frame | 1 | 02/1962 | 08/1968 | 51317640104 | $149.94 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Decorative frame left | X | 02/1962 | 08/1968 | 51317640110 | ENDED | Shop at ECS Tuning | |||
| -- | Decorative frame right | X | 02/1962 | 08/1968 | 51317640111 | $108.38 | ENDED | Shop at ECS Tuning | ||
| 07 | Cup | 4 | 02/1962 | 08/1968 | 51317041764 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Decorative frame left | X | 02/1962 | 08/1968 | 51317640110 | ENDED | Shop at ECS Tuning | |||
| -- | Decorative frame right | X | 02/1962 | 08/1968 | 51317640111 | $108.38 | ENDED | Shop at ECS Tuning | ||
| -- | Decorative frame left | X | 02/1962 | 08/1968 | 51317640160 | ENDED | Shop at ECS Tuning | |||
| -- | Decorative frame right | X | 02/1962 | 08/1968 | 51317640161 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear window green | 1 | 51311800768 | ENDED | Shop at ECS Tuning | |||||
| 08 | Heated rear window, green | 1 | 51311805939 | ENDED | Shop at ECS Tuning | |||||
| 08 | Rear window | 1 | 51317640150 | ENDED | Shop at ECS Tuning | |||||
| 08 | Heated rear window | 1 | 51319558366 | ENDED | Shop at ECS Tuning | |||||
| 09 | Decorative frame right | 1 | 02/1962 | 08/1968 | 51317640161 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Sealing frame | X | 02/1962 | 08/1968 | 51317640154 | ENDED | Shop at ECS Tuning | |||
| 10 | Sealing frame | 1 | 02/1962 | 08/1968 | 51317640154 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Decorative frame left | X | 02/1962 | 08/1968 | 51317640160 | ENDED | Shop at ECS Tuning | |||
| -- | Decorative frame right | X | 02/1962 | 08/1968 | 51317640161 | ENDED | Shop at ECS Tuning | |||
| 11 | Decorative frame left | 1 | 02/1962 | 08/1968 | 51317640160 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Sealing frame | X | 02/1962 | 08/1968 | 51317640154 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
