Glazing for BMW 1500-2000CS 1800 (1968)

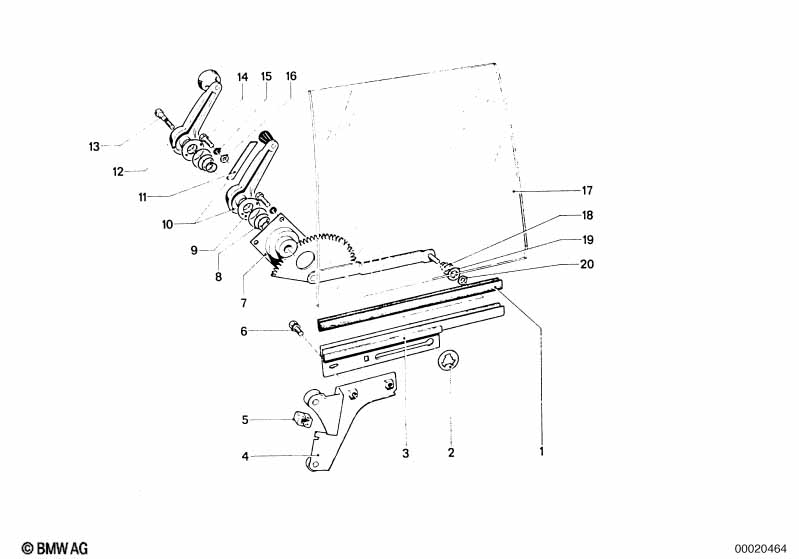

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber seal | X | 51326540282 | $9.69 | Shop at ECS Tuning | |||||
| 02 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 03 | Rail | 1 | 51326654150 | $50.78 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rail | 1 | 51326654151 | $50.78 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket left | 1 | 51326654165 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bracket right | 1 | 51326654166 | ENDED | Shop at ECS Tuning | |||||
| 05 | Sliding piece | 2 | 51326654347 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X16-SB-Z3-2 | 4 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Window lifter front left | 1 | 51326646100 | ENDED | Shop at ECS Tuning | |||||
| 07 | Window lifter front right | 1 | 51326646101 | $70.03 | ENDED | Shop at ECS Tuning | ||||
| 08 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 09 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 10 | Crank | 2 | 01/1966 | 03/1971 | 51326646115 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | 2 | 02/1962 | 03/1971 | 51327041897 | ENDED | Shop at ECS Tuning | |||
| 15 | Tooth washer | A6,4 | 6 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Washer | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Door window green front left | 1 | 51321800795 | ENDED | Shop at ECS Tuning | |||||
| 17 | Door window green front right | 1 | 51321800796 | ENDED | Shop at ECS Tuning | |||||
| 17 | Door window clear front left | 1 | 51326654210 | ENDED | Shop at ECS Tuning | |||||
| 17 | Door window clear front right | 1 | 51326654211 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
