Glazing for BMW 1500-2000CS 1800 (1968)

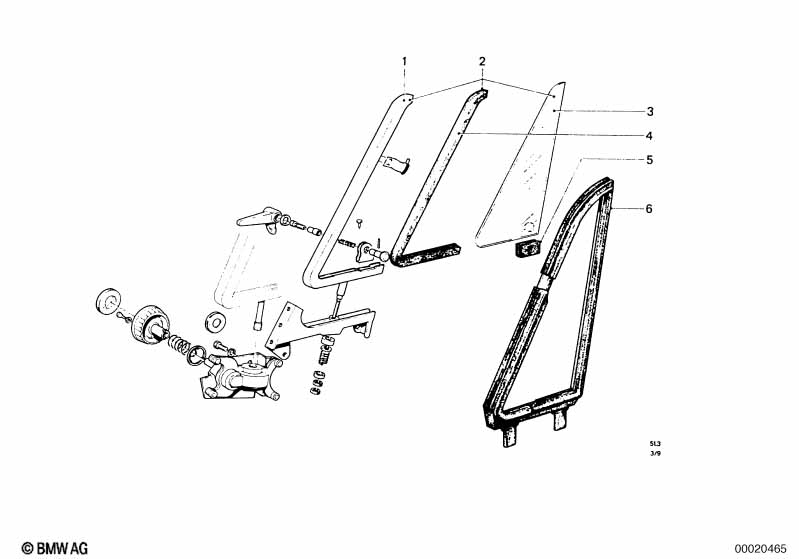

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window frame, front left | 1 | 51326654352 | ENDED | Shop at ECS Tuning | |||||
| 01 | Window frame front right | 1 | 51326654353 | ENDED | Shop at ECS Tuning | |||||
| 02 | Vent window green left | 1 | 51321817439 | ENDED | Shop at ECS Tuning | |||||
| 02 | Vent window green right | 1 | 51321817440 | ENDED | Shop at ECS Tuning | |||||
| 02 | Vent window clear left | 1 | 51326654350 | ENDED | Shop at ECS Tuning | |||||
| 02 | Vent window clear right | 1 | 51326654351 | ENDED | Shop at ECS Tuning | |||||
| 03 | Vent window green left | 1 | 51321800791 | $97.09 | ENDED | Shop at ECS Tuning | ||||
| 03 | Vent window green right | 1 | 51321800792 | ENDED | Shop at ECS Tuning | |||||
| 03 | Vent window clear left | 1 | 51326754362 | ENDED | Shop at ECS Tuning | |||||
| 03 | Vent window clear right | 1 | 51326754363 | ENDED | Shop at ECS Tuning | |||||
| 04 | Rubber seal | X | 51326654357 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rubber seal | 1 | 51326654265 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rubber seal | 1 | 51326654266 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
