Door trim panel, front for BMW 1500-2000CS 1800 (1968)

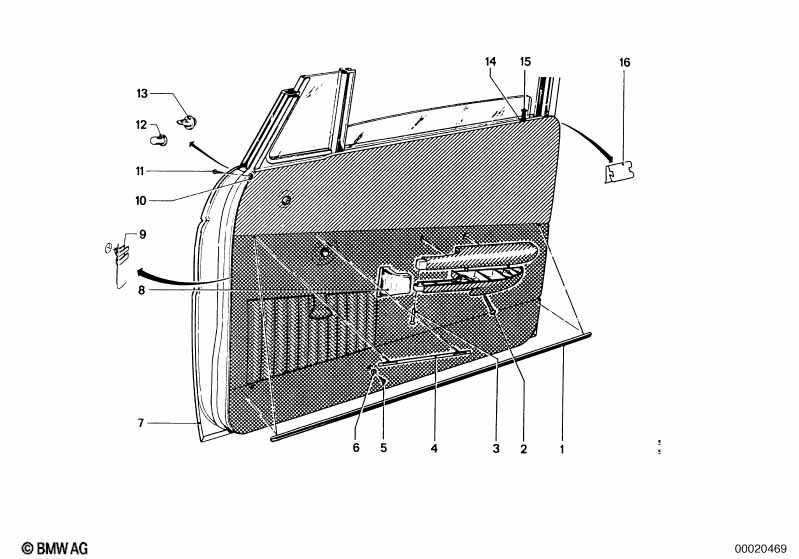

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister head self-tapping screw | ST5,5X38 | 4 | 02/1962 | 12/1968 | 07119907782 | ENDED | Shop at ECS Tuning | ||
| 03 | Csk.fillister head srew | AM4X12 | 2 | 02/1962 | 12/1968 | 07119901703 | ENDED | Shop at ECS Tuning | ||
| 05 | Recessed oval head sheet-metal screw | ST2,9X25 | 4 | 02/1962 | 12/1968 | 07119902428 | $0.18 | Shop at ECS Tuning | ||
| 06 | Hollow washer | 18 | 02/1962 | 12/1968 | 51417570111 | $1.64 | Shop at ECS Tuning | |||
| 08 | Bracket left | CHROM | 1 | 02/1962 | 12/1968 | 51416640158 | ENDED | Shop at ECS Tuning | ||
| 08 | Bracket right | CHROM | 1 | 02/1962 | 12/1968 | 51416640159 | ENDED | Shop at ECS Tuning | ||
| 09 | Clamp | 14 | 02/1962 | 12/1968 | 51416654189 | ENDED | Shop at ECS Tuning | |||
| 10 | Hollow washer | 12 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||||
| 11 | Recessed oval head sheet-metal screw | ST2,9X13 | 8 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||

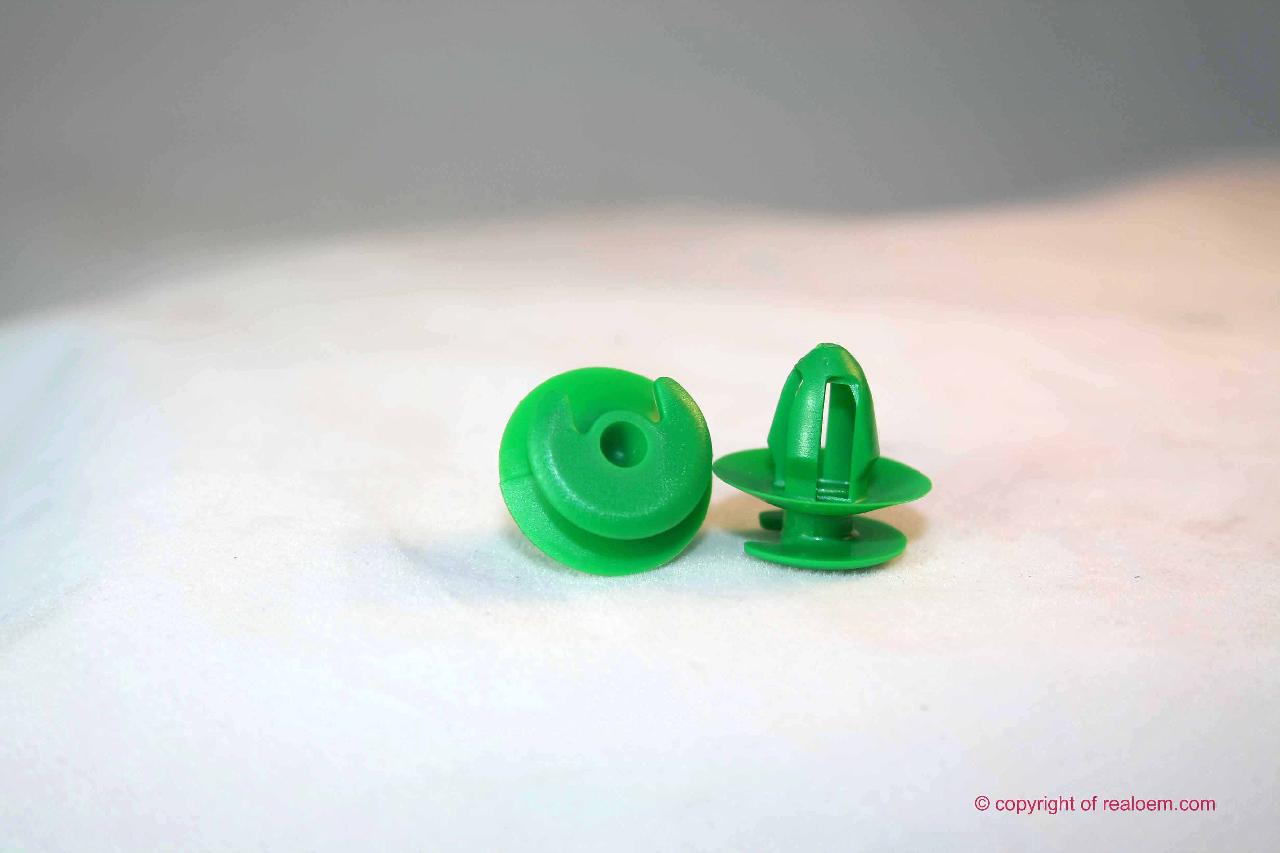

| 13 | Clamp | 22 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 14 | Grommet | 2 | 51226654104 | ENDED | Shop at ECS Tuning | |||||
| 15 | Button | 2 | 51216654120 | $2.40 | ENDED | Shop at ECS Tuning | ||||
| 16 | Covering cap | 4 | 51326740135 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
