Door trim panel, front for BMW 1500-2000CS 1800 (1968)

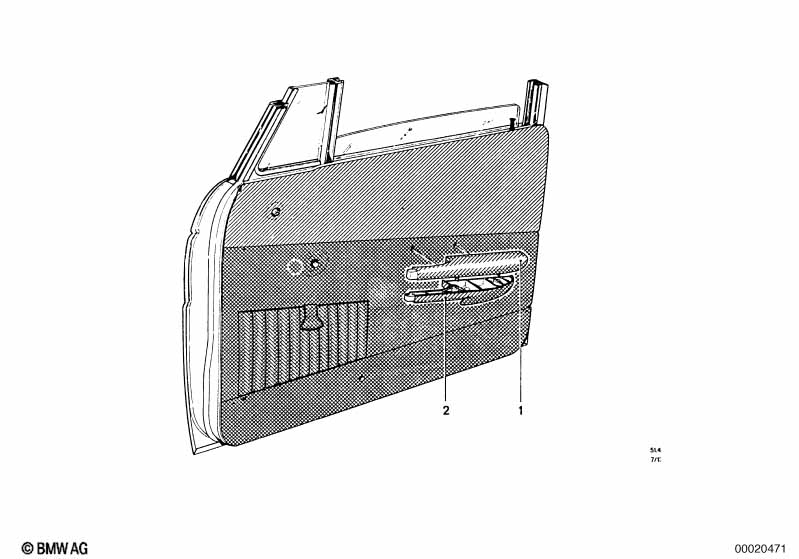

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left pad | SCHWARZ | 1 | 51416640163 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pad right | SCHWARZ | 1 | 51416640164 | ENDED | Shop at ECS Tuning | ||||
| 02 | Handle bracket left | SCHWARZ | 1 | 51416640160 | ENDED | Shop at ECS Tuning | ||||
| 02 | Handle bracket right | SCHWARZ | 1 | 51416640161 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 1500-2000CS 1800 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Left pad (Part #51416640163).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 1500-2000CS 1800 produced during 1968. These technical specifications ensure that parts like the Left pad (51416640163) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Left pad by locating its position on the schematic, which then links to the official BMW part number 51416640163 for the Vehicle trim section.
