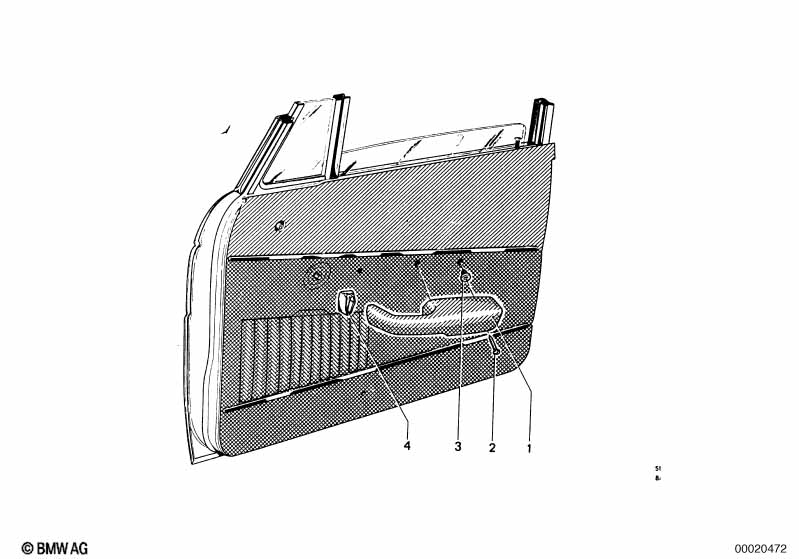

Door trim panel, front for BMW 1500-2000CS 1800 (1965)
This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1965.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest left | SCHWARZ | 1 | 51421804977 | $94.58 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest right | SCHWARZ | 1 | 51421804978 | $114.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Sheet metal screw | 0000000000 | 4 | 07119907759 | ENDED | Shop at ECS Tuning | ||||

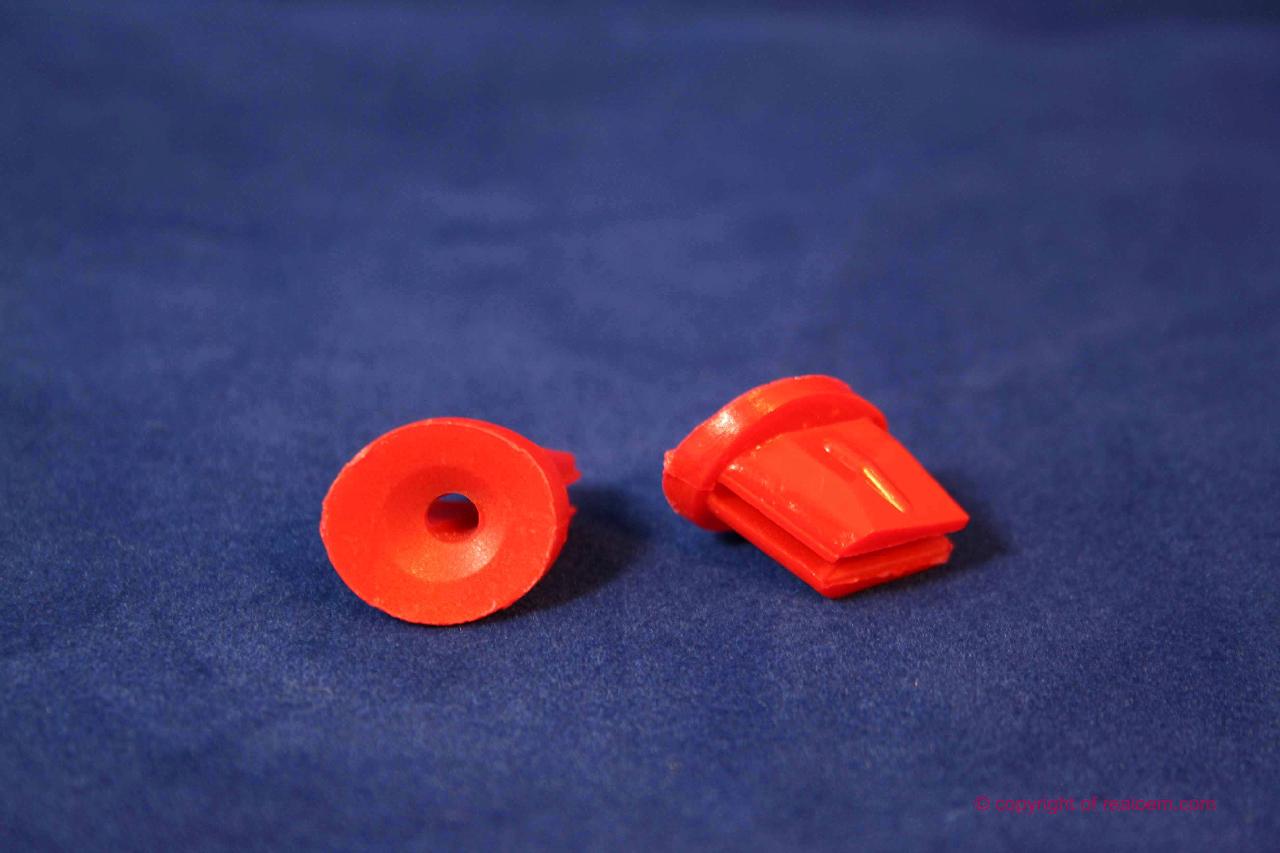

| 03 | Expanding nut | 4 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cap left | 1 | 51421803705 | $11.41 | Shop at ECS Tuning | |||||
| 04 | Cap right | 1 | 51421803706 | $17.16 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
