Glazing for BMW 1500-2000CS 1800 (1968)

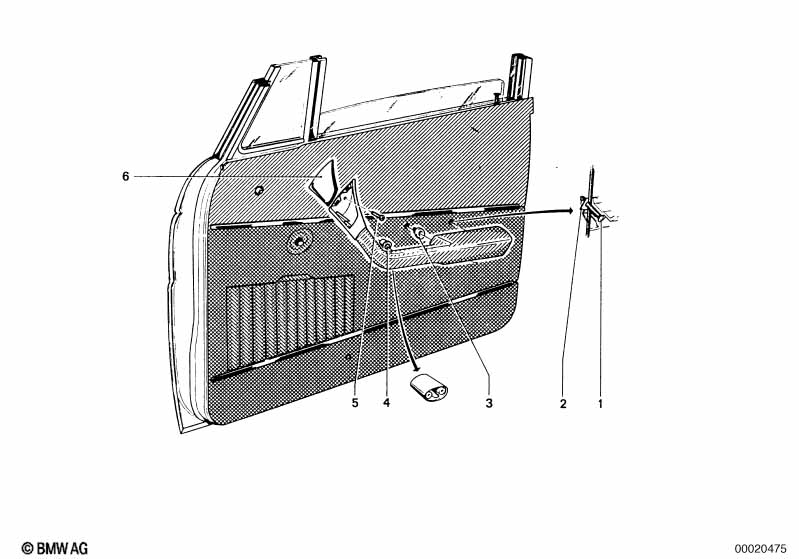

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sheet metal screw | ST4,8X38-R-ZNFE | 6 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||

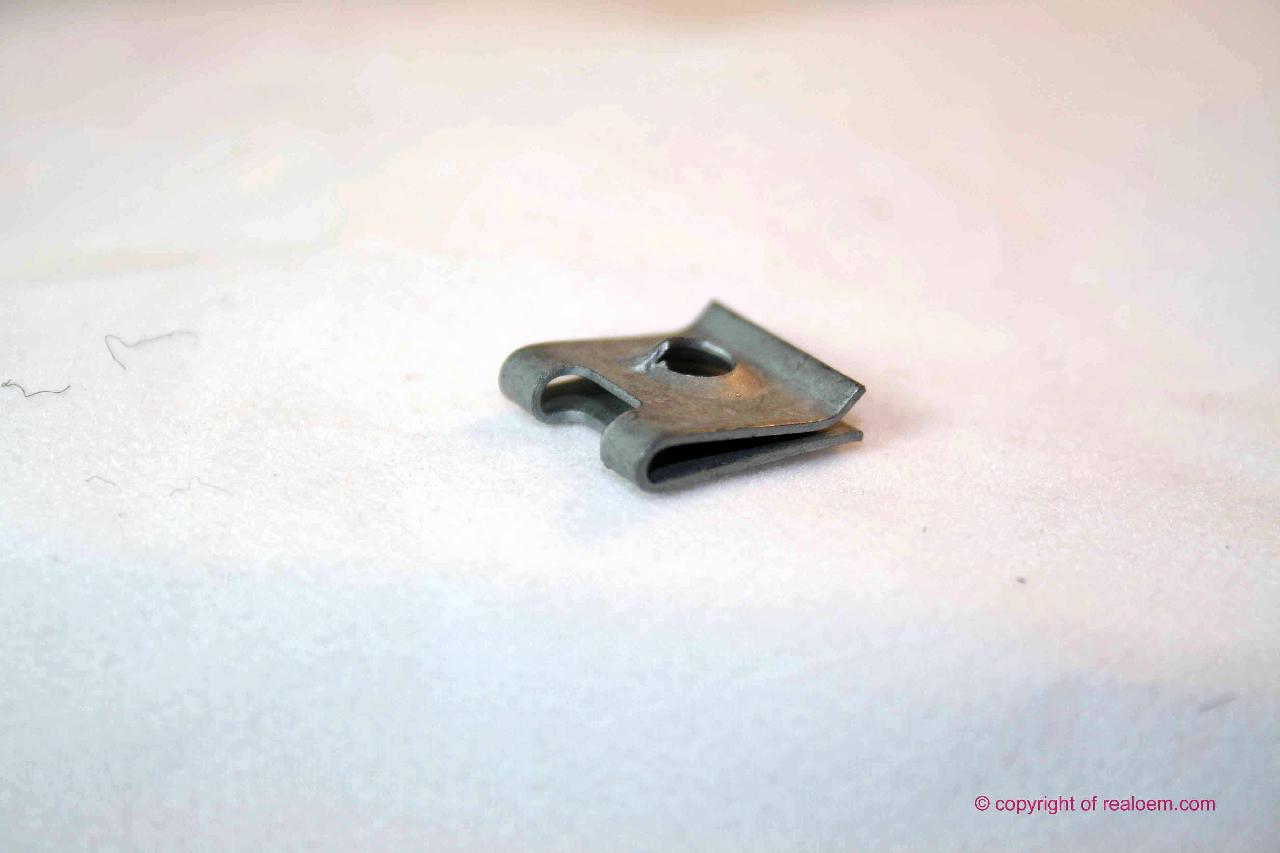

| 02 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Expanding nut | 6 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bush | 4 | 51411807940 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST4,8X19 | 2 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Cap left | 1 | 07/1968 | 01/1972 | 51411815255 | $18.97 | Shop at ECS Tuning | |||
| 06 | Cap right | 1 | 07/1968 | 01/1972 | 51411815256 | $18.97 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
