Door trim, rear for BMW 1500-2000CS 2000tii (1970)

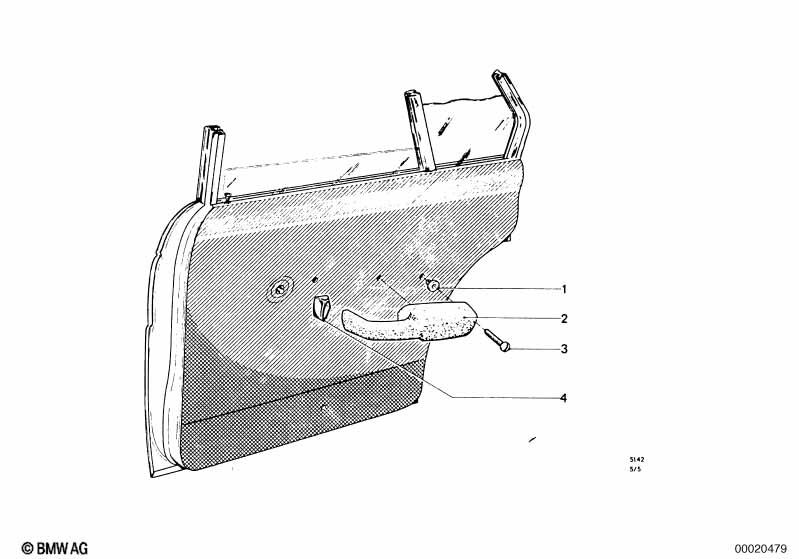

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expanding nut | 4 | 51411801262 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Armrest left | SCHWARZ | 1 | 51421804977 | $94.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest right | SCHWARZ | 1 | 51421804978 | $114.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Sheet metal screw | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Cap left | 1 | 51421803705 | $11.41 | Shop at ECS Tuning | |||||
| 04 | Cap right | 1 | 51421803706 | $17.16 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tii Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 1500-2000CS 2000tii produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Expanding nut (Part #51411801262).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 1500-2000CS 2000tii produced during 1970. These technical specifications ensure that parts like the Expanding nut (51411801262) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tii, you can identify the Expanding nut by locating its position on the schematic, which then links to the official BMW part number 51411801262 for the Vehicle trim section.
