Bumper rear for BMW 2500-3.3Li 2500 (1968)

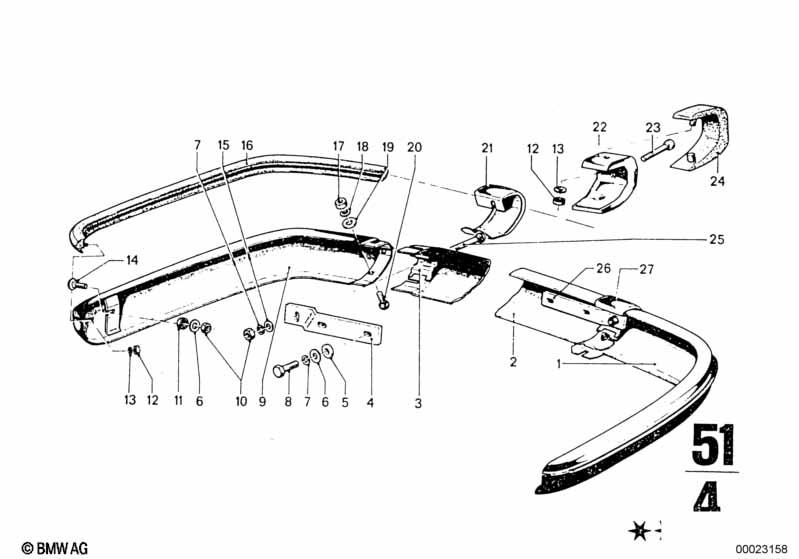

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper rear left | 1 | 51121800175 | $360.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bumper rear center | 1 | 51121800174 | $362.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spacer sleeve | 2 | 51121800140 | ENDED | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 08/1968 | 09/1973 | 51121800544 | ENDED | Shop at ECS Tuning | |||
| 05 | Washer-gasket | 4 | 51125670140 | $0.50 | Shop at ECS Tuning | |||||
| 06 | Washer | 8,4X24X2-ZNS3 | 6 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Bumper rear right | 1 | 51121800176 | $360.47 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-8-ZNS3 | 12 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 12 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Rubber washer | 4 | 51125071765 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 15 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 16 | Protective Mouldings | 1 | 08/1968 | 02/1977 | 51121829496 | $99.64 | ENDED | Shop at ECS Tuning | ||
| 17 | Hex nut | M8-8-ZNS3 | 12 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 17 | Hex nut | M8-8-ZNNIV SI | 12 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 20 | Square headed bolt | M8X16 | 4 | 51121804528 | $0.57 | Shop at ECS Tuning | ||||
| 21 | Cover | 2 | 08/1968 | 02/1977 | 51121804413 | $73.66 | ENDED | Shop at ECS Tuning | ||
| 25 | Screw | 2 | 51121804527 | $1.40 | Shop at ECS Tuning | |||||
| 26 | Spring clip | 1 | 08/1968 | 09/1973 | 51121800543 | $13.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
