Moldings for BMW 2500-3.3Li 2500 (1968)

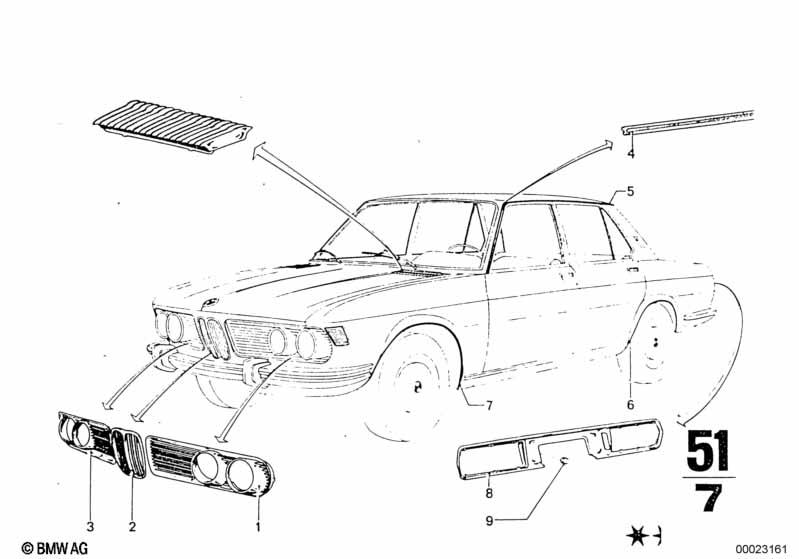

This Moldings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | 1 | 08/1968 | 05/1971 | 51131802567 | $140.62 | ENDED | Shop at ECS Tuning | ||
| -> Fg 2019555 / 2500 -> Fg 2180395 / 2500 Rl -> Fg 2143098 / 2500 A -> Fg 2190238 / 2500 A Rl -> Fg 2120476 / 2500 Usa -> Fg 2150780 / 2500 A Usa -> Fg 2310691 / 2800 -> Fg 2480628 / 2800 Rl -> Fg 2443450 / 2800 A -> Fg 2490216 / 2800 A Rl -> Fg 2420370 / 2800 Usa -> Fg 2460474 / 2800 A Usa |
||||||||||
| 01 | Grille left | 1 | 08/1968 | 02/1977 | 51131808703 | $215.39 | ENDED | Shop at ECS Tuning | ||
| Fg -> 2019555 / 2500 Fg -> 2180395 / 2500 Rl Fg -> 2143098 / 2500 A Fg -> 2190238 / 2500 A Rl Fg -> 2120476 / 2500 Usa Fg -> 2150780 / 2500 A Usa Fg 2310691 / 2800 Fg -> 2480628 / 2800 Rl Fg -> 2443450 / 2800 A Fg -> 2490216 / 2800 A Rl Fg -> 2420370 / 2800 Usa Fg -> 2460474 / 2800 A Usa |
||||||||||
| 02 | Grille center | 1 | 08/1968 | 09/1973 | 51131801604 | $447.43 | Shop at ECS Tuning | |||
| 03 | Grille right | 1 | 08/1968 | 05/1971 | 51131802568 | $136.15 | ENDED | Shop at ECS Tuning | ||
| -> Fg 2019555 / 2500 -> Fg 2180395 / 2500 Rl -> Fg 2143098 / 2500 A -> Fg 2190238 / 2500 A Rl -> Fg 2120476 / 2500 Usa -> Fg 2150780 / 2500 A Usa -> Fg 2310691 / 2800 -> Fg 2480628 / 2800 Rl -> Fg 2443450 / 2800 A -> Fg 2490216 / 2800 A Rl -> Fg 2420370 / 2800 Usa -> Fg 2460474 / 2800 A Usa |
||||||||||
| 03 | Grille right | 1 | 08/1968 | 02/1977 | 51131808704 | $212.04 | ENDED | Shop at ECS Tuning | ||
| Fg -> 2019555 / 2500 Fg -> 2180395 / 2500 Rl Fg -> 2143098 / 2500 A Fg -> 2190238 / 2500 A Rl Fg -> 2120476 / 2500 Usa Fg -> 2150780 / 2500 A Usa Fg -> 2310691 / 2800 Fg -> 2480628 / 2800 Rl Fg -> 2443450 / 2800 A Fg -> 2490216 / 2800 A Rl Fg -> 2420370 / 2800 Usa Fg -> 2460474 / 2800 A Usa |
||||||||||
| 04 | sealing | 2 | 08/1968 | 02/1977 | 51131800412 | ENDED | Shop at ECS Tuning | |||
| 05 | Moulding left | 1 | 08/1968 | 05/1971 | 51131803669 | $51.46 | ENDED | Shop at ECS Tuning | ||
| -> Fg 2022724 / 2500 -> Fg 2180499 / 2500 Rl -> Fg 2143925 / 2500 A -> Fg 2190280 / 2500 A Rl -> Fg 2120621 / 2500 Usa -> Fg 2150892 / 2500 A Usa -> Fg 2312514 / 2800 -> Fg 2480774 / 2800 Rl -> Fg 2444429 / 2800 A -> Fg 2490319 / 2800 A Rl -> Fg 2420550 / 2800 Usa -> Fg 2460672 / 2800 A Usa |
||||||||||
| 05 | Moulding right | 1 | 08/1968 | 05/1971 | 51131803670 | $52.17 | ENDED | Shop at ECS Tuning | ||
| -> Fg 2022724 / 2500 -> Fg 2180499 / 2500 Rl -> Fg 2143925 / 2500 A -> Fg 2190280 / 2500 A Rl -> Fg 2120621 / 2500 Usa -> Fg 2150892 / 2500 A Usa -> Fg 2312514 / 2800 -> Fg 2480774 / 2800 Rl -> Fg 2444429 / 2800 A -> Fg 2490319 / 2800 A Rl -> Fg 2420550 / 2800 Usa -> Fg 2460672 / 2800 A Usa |
||||||||||
| 08 | Cover | 1 | 08/1968 | 05/1971 | 51131800341 | ENDED | Shop at ECS Tuning | |||
| 09 | Cap nut | M4 | 3 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
