Moldings for BMW 2500-3.3Li 2500 (1968)
This Moldings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding front left | 1 | 51131817599 | $66.61 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulding front right | 1 | 51131817600 | $66.61 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding front left | 1 | 51131817601 | $66.61 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding front right | 1 | 51131817602 | $66.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Decorative strip | 1 | 08/1968 | 02/1977 | 51131817603 | $59.93 | ENDED | Shop at ECS Tuning | ||
| 03 | Decorative strip | 1 | 08/1968 | 02/1977 | 51131817604 | $59.93 | ENDED | Shop at ECS Tuning | ||
| 04 | Left rear moulding | 1 | 08/1968 | 02/1977 | 51131817605 | $62.10 | ENDED | Shop at ECS Tuning | ||

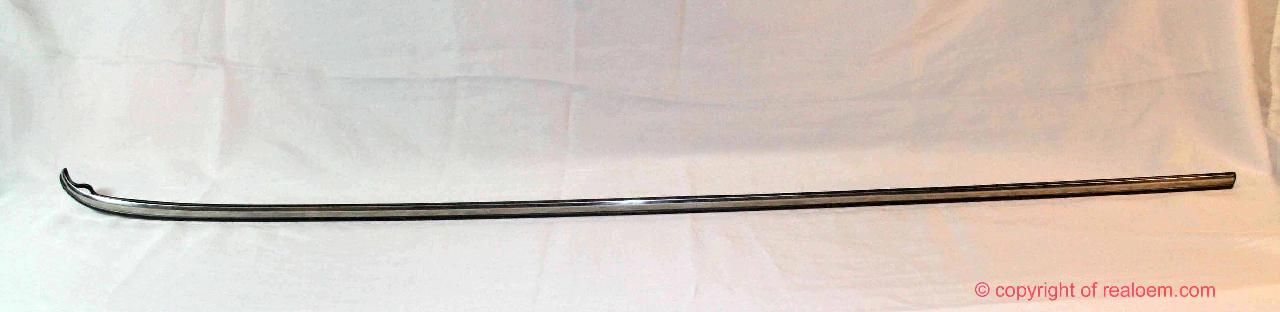

| 04 | Right rear moulding | 1 | 08/1968 | 02/1977 | 51131817606 | $62.10 | ENDED | Shop at ECS Tuning | ||
| 05 | Clip | 32 | 51131804205 | $1.71 | Shop at ECS Tuning | |||||
| 08 | Clamp | X | 08/1968 | 02/1977 | 51131817064 | $3.10 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
