Glazing for BMW 2500-3.3Li 2800 (1969)

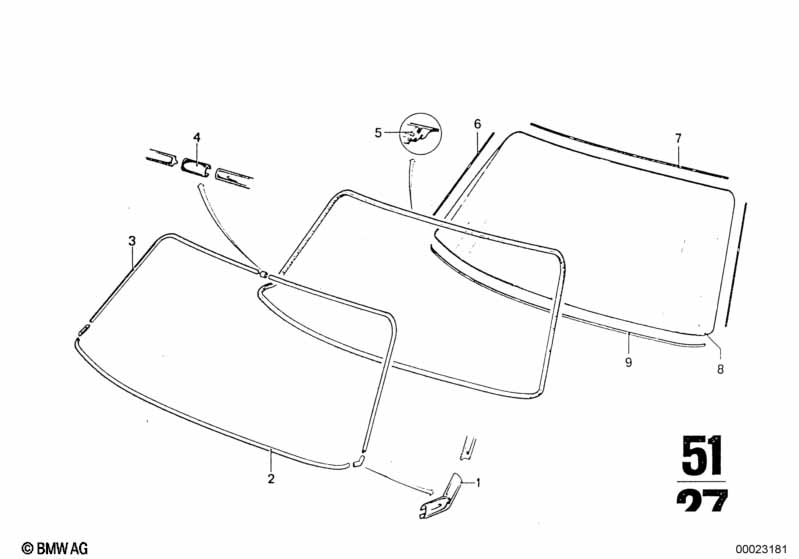

This Glazing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cup | 2 | 08/1968 | 02/1977 | 51311800303 | ENDED | Shop at ECS Tuning | |||
| 02 | Decorative frame bottom | 1 | 51311800028 | ENDED | Shop at ECS Tuning | |||||
| 03 | Decorative frame left | 1 | 51311800029 | $92.98 | ENDED | Shop at ECS Tuning | ||||
| 03 | Decorative frame right | 1 | 51311800030 | $92.98 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cup | 2 | 51311800068 | $23.19 | Shop at ECS Tuning | |||||
| 05 | Sealing frame | 1 | 01/1969 | 07/1971 | 51311809676 | ENDED | Shop at ECS Tuning | |||
| 06 | Decorative strip | 2 | 01/1969 | 07/1974 | 51311809653 | ENDED | Shop at ECS Tuning | |||
| 07 | Moulding upper | 1 | 01/1969 | 07/1974 | 51311809651 | ENDED | Shop at ECS Tuning | |||
| 08 | Green windshield | 1 | 51311813710 | $541.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Front windshield clear | 1 | 08/1968 | 02/1977 | 51311801972 | $263.08 | ENDED | Shop at ECS Tuning | ||
| 09 | Moulding lower | 1 | 01/1969 | 07/1974 | 51311809652 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
