Glazing for BMW 2500-3.3Li 2500 (1968)

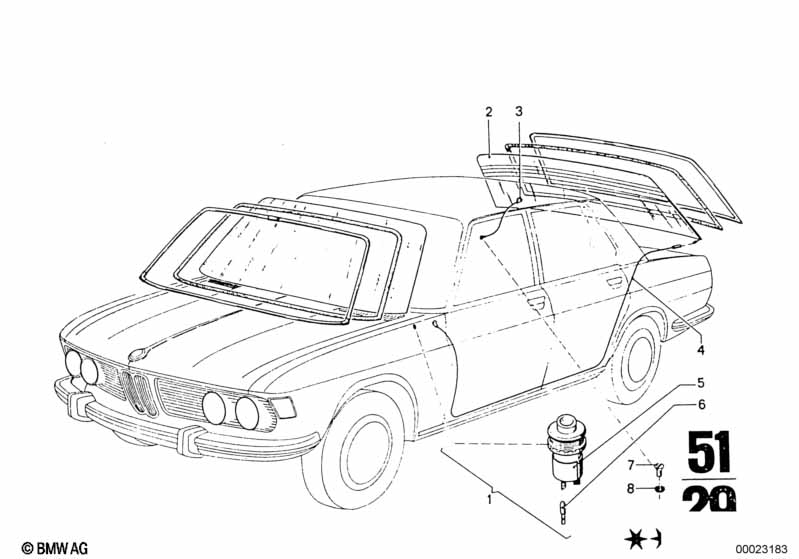

This Glazing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Special accessories | ||||||||||
| 01 | Installing set heatable rear window | 1 | 51311351603 | ENDED | Shop at ECS Tuning | |||||
| 01 | Installing set heatable rear window | 1 | 51311351604 | ENDED | Shop at ECS Tuning | |||||
| 02 | Rear window | 1 | 51311350687 | ENDED | Shop at ECS Tuning | |||||
| 02 | Heated rear window | 1 | 51311350688 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cable | 1 | 61129558371 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cable | 1 | 61129558374 | ENDED | Shop at ECS Tuning | |||||
| 05 | Switch heated rear window | 1 | 61311353590 | $86.37 | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 1,2W | 1 | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST4,8X9,5-C-H-Z | 1 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 08 | Tooth washer | A5,1 | 1 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
