Door window for BMW 2500-3.3Li 2500 (1968)

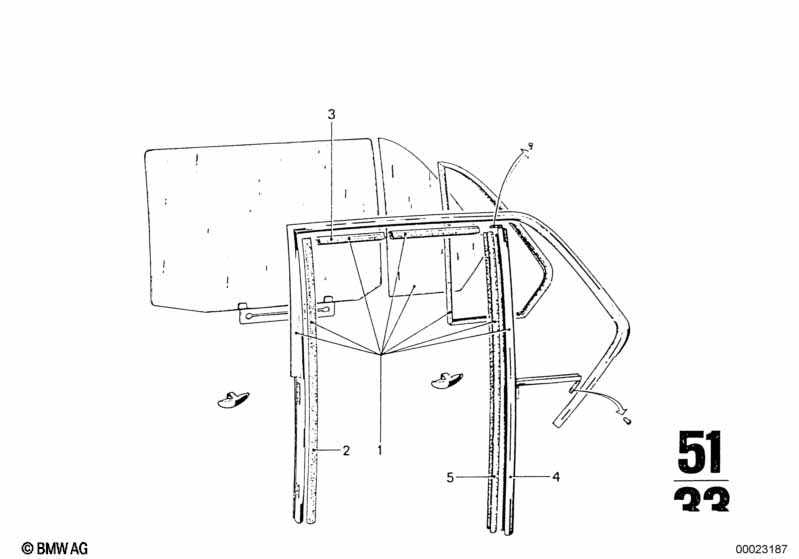

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 01 | Window frame rear left | 1 | 08/1968 | 02/1977 | 51341801255 | $306.90 | ENDED | Shop at ECS Tuning | ||
| 01 | Window frame rear right | 1 | 08/1968 | 02/1977 | 51341801256 | ENDED | Shop at ECS Tuning | |||
| 02 | Front window guide | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 02 | Front window guide | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 03 | Window guide | 1 | 08/1968 | 02/1977 | 51341800693 | $26.12 | Shop at ECS Tuning | |||
| 03 | Window guide | 1 | 08/1968 | 02/1977 | 51341800694 | $33.33 | Shop at ECS Tuning | |||
| 04 | Window guide rail | 1 | 51341800459 | $54.68 | ENDED | Shop at ECS Tuning | ||||
| 04 | Window guide rail | 1 | 51341800460 | $54.68 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left One-piece window guide | 1 | 51341852229 | $44.39 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right One-piece window guide | 1 | 51341852230 | $44.39 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Door window?
- This technical diagram illustrates the Door window within the Vehicle trim group for the 2500-3.3Li 2500 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Window frame rear left (Part #51341801255).
- Which models use the hardware listed in this Door window?
- The hardware and components featured in the Door window are specific to the 2500-3.3Li 2500 produced during 1968. These technical specifications ensure that parts like the Window frame rear left (51341801255) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window assembly?
- Each item in the Door window corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Window frame rear left by locating its position on the schematic, which then links to the official BMW part number 51341801255 for the Vehicle trim section.
