Door window for BMW 2500-3.3Li 2500 (1968)

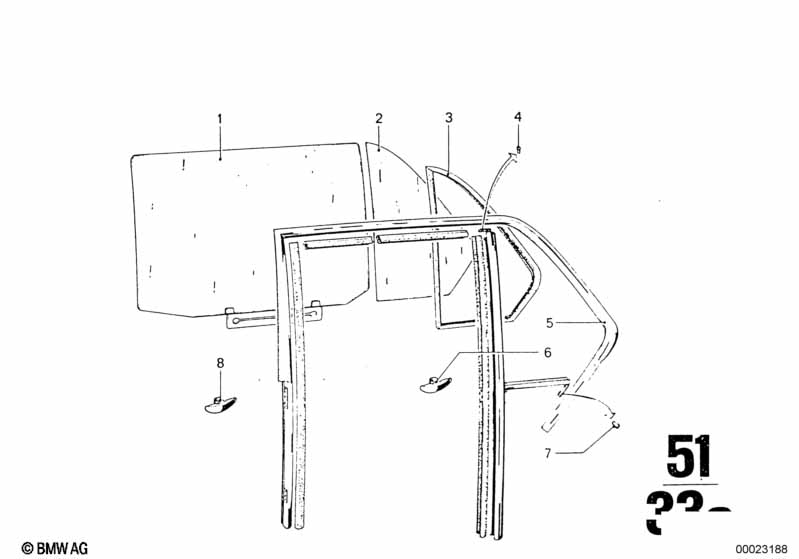

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door window clear rear left | 1 | 08/1968 | 02/1977 | 51341800681 | $107.14 | ENDED | Shop at ECS Tuning | ||
| 01 | Door window clear rear right | 1 | 08/1968 | 02/1977 | 51341800682 | $107.14 | Shop at ECS Tuning | |||
| 01 | Door window, green, rear left | 1 | 08/1968 | 02/1977 | 51341808799 | $151.78 | ENDED | Shop at ECS Tuning | ||
| 01 | Door window green rear right | 1 | 08/1968 | 02/1977 | 51341808800 | ENDED | Shop at ECS Tuning | |||
| 02 | Door window, green, rear left | 1 | 51341804389 | $116.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Door window green rear right | 1 | 51341804390 | $116.00 | Shop at ECS Tuning | |||||
| 02 | Fixed door window, transp. left | 1 | 08/1968 | 02/1977 | 51341800451 | $107.14 | ENDED | Shop at ECS Tuning | ||
| 02 | Fixed door window, transp. right | 1 | 08/1968 | 02/1977 | 51341800452 | $107.14 | ENDED | Shop at ECS Tuning | ||
| 03 | Sealing frame | 2 | 51341800584 | $27.89 | Shop at ECS Tuning | |||||
| 04 | Rivet | B4X7 | 4 | 07119949255 | ENDED | Shop at ECS Tuning | ||||
| 05 | Window frame rear left | 1 | 08/1968 | 02/1977 | 51341800167 | ENDED | Shop at ECS Tuning | |||
| 05 | Window frame rear right | 1 | 08/1968 | 02/1977 | 51341800168 | ENDED | Shop at ECS Tuning | |||
| 05 | Window frame rear left | 1 | 08/1968 | 02/1977 | 51341821095 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 05 | Window frame rear right | 1 | 08/1968 | 02/1977 | 51341821096 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering cap | 2 | 51211804146 | $2.74 | Shop at ECS Tuning | |||||
| 07 | Rivet | 3,2-3A | 2 | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering cap | 4 | 51211804147 | $2.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
