Trim panel for BMW 2500-3.3Li 2500 (1968)

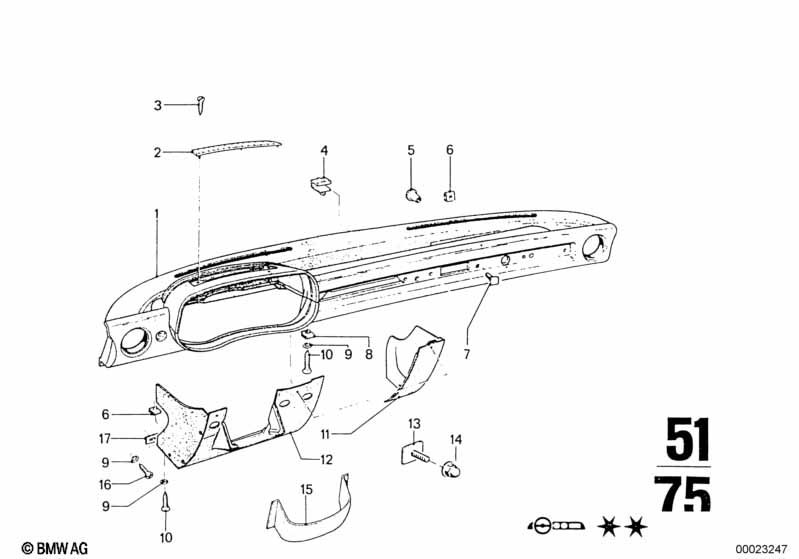

This Trim panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 08/1968 | 02/1977 | 51451823952 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 51451815899 | $77.06 | ENDED | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST2,9X13 | 3 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,2-2ZNS | 4 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Button | 2 | 51451802117 | ENDED | Shop at ECS Tuning | |||||
| 06 | Body nut | ST4,2-1-ZNS3 | 9 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 51451802070 | ENDED | Shop at ECS Tuning | |||||
| 08 | Body nut | ST2,9-1 | 1 | 07129901631 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hollow washer | 8 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||||
| 10 | Set fillister head self-tapping screw 20 | ST4,2X13 | 1 | 07509064383 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 51451816806 | ENDED | Shop at ECS Tuning | |||||
| 12 | Trim panel | 1 | 08/1968 | 02/1977 | 51451824173 | ENDED | Shop at ECS Tuning | |||
| 13 | Clamp | 2 | 08/1968 | 02/1977 | 51131817064 | $3.10 | Shop at ECS Tuning | |||
| 14 | Cap nut | M4 | 2 | 08/1968 | 02/1977 | 41335480120 | $0.20 | Shop at ECS Tuning | ||
| 15 | Cup | 1 | 51451807595 | ENDED | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST4,2X19 | 1 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 51451805996 | ENDED | Shop at ECS Tuning |
