Trim panel for BMW 2500-3.3Li 3.3L (1974)

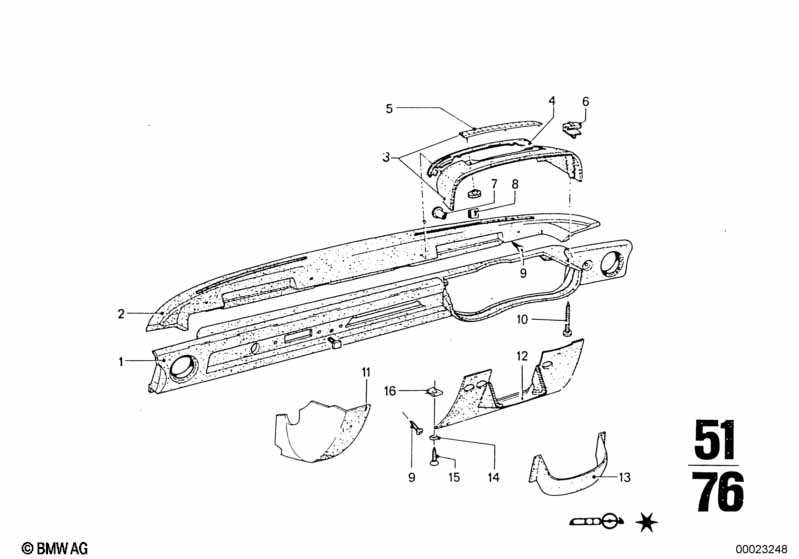

This Trim panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 51451802210 | ENDED | Shop at ECS Tuning | |||||
| 02 | Trim panel | 1 | 51451802994 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 51451801251 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 51451802840 | ENDED | Shop at ECS Tuning | |||||
| 06 | Clamp | 5 | 51451800090 | ENDED | Shop at ECS Tuning | |||||
| 07 | Button | 2 | 51451802117 | ENDED | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,2-1-ZNS3 | 9 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Set fillister head self-tapping screw 20 | ST4,2X13 | 6 | 07509064383 | ENDED | Shop at ECS Tuning | ||||
| 10 | Recessed oval head sheet-metal screw | ST4,2X32 | 2 | 07119902475 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 11 | Trim panel | 1 | 51451803535 | ENDED | Shop at ECS Tuning | |||||
| 11 | Trim panel | 1 | 51451803536 | ENDED | Shop at ECS Tuning | |||||
| 12 | Trim panel | 1 | 10/1973 | 02/1977 | 51451832400 | $74.21 | ENDED | Shop at ECS Tuning | ||
| 14 | Hollow washer | 2 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||||
| 15 | Recessed oval head sheet-metal screw | ST2,9X13 | 2 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 16 | Holder | 1 | 51451805996 | ENDED | Shop at ECS Tuning | |||||
| 17 | Body nut | ST4,2-2ZNS | 2 | 07129901645 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
