Emblems / letterings for BMW 2500-3.3Li 3.3Li (1975)

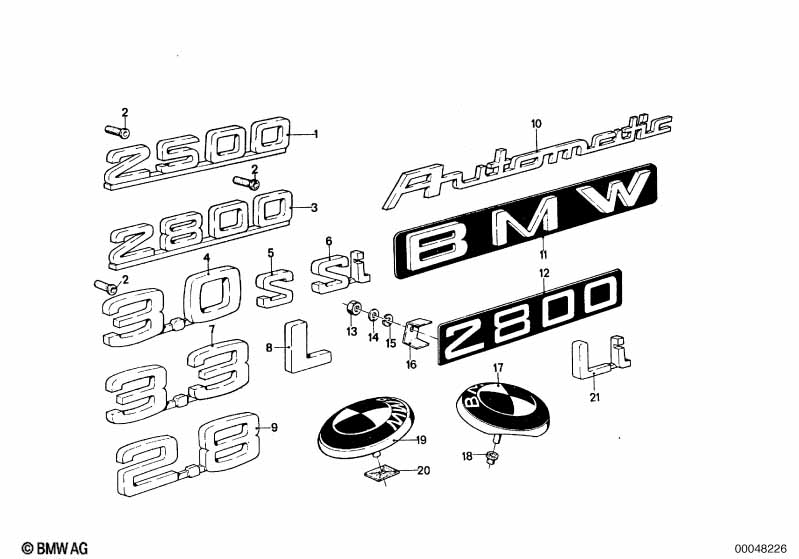

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Grommet | 8 | 51141803459 | $1.34 | Shop at ECS Tuning | |||||
| 07 | Emblem | ''3,3'' | 1 | 51141843499 | $22.54 | ENDED | Shop at ECS Tuning | |||
| 10 | Emblem | "AUTOMATIC" | 1 | 51141802320 | $57.29 | Shop at ECS Tuning | ||||
| 10 | Emblem | "AUTOMATIC" | 1 | 51141802320 | $57.29 | Shop at ECS Tuning | ||||
| 11 | Emblem | "BMW" | 1 | 51141838952 | $56.02 | ENDED | Shop at ECS Tuning | |||
| 17 | Trunk lid badge | 1 | 51141872327 | $35.63 | Shop at ECS Tuning | |||||
| 18 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||

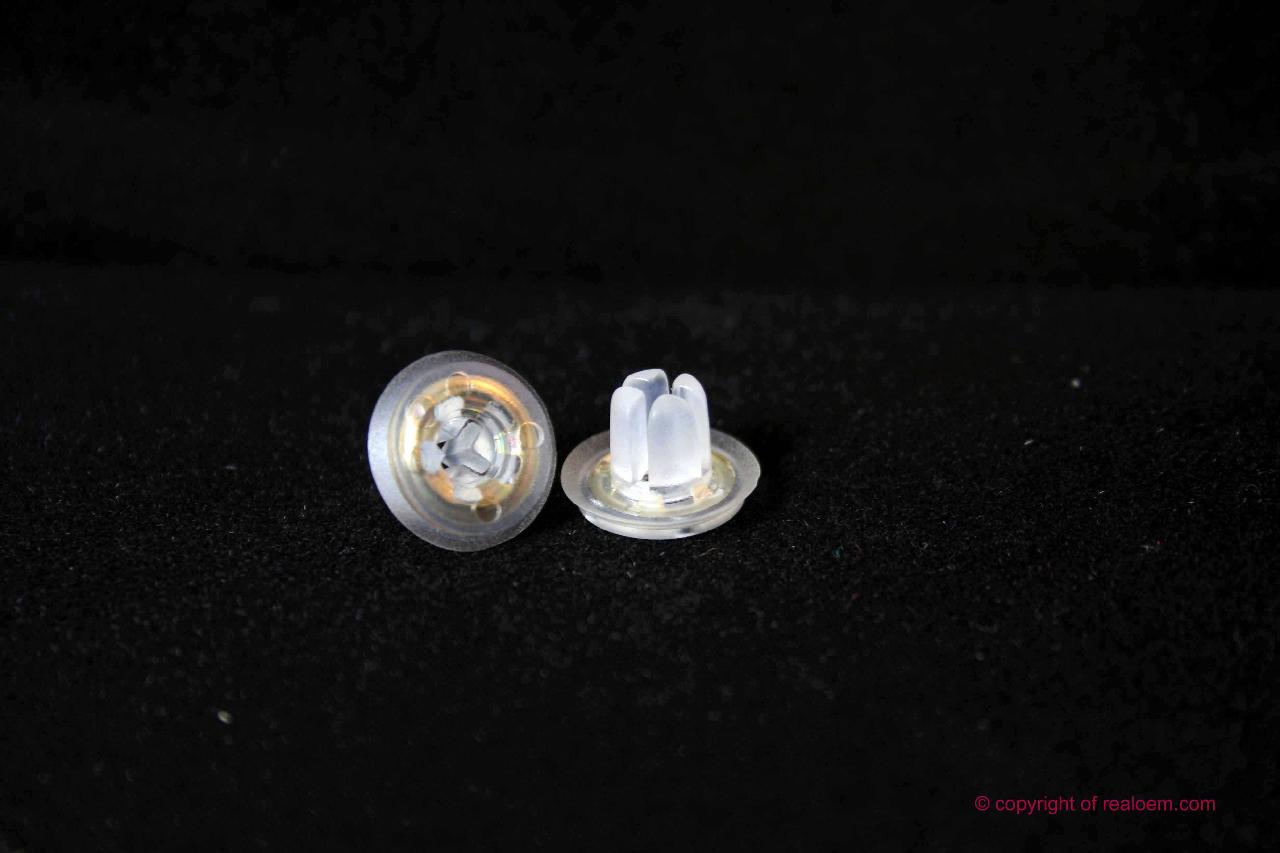

| 18 | Grommet | 2 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 19 | BMW emblem | 1 | 51145081747 | $28.44 | Shop at ECS Tuning | |||||
| 20 | Grommet | 2 | 51145480184 | $3.07 | ENDED | Shop at ECS Tuning | ||||
| 21 | Emblem | ''LI'' | 1 | 51141843079 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
