Single parts of front seat controls for BMW 1500-2000CS 1800 (1969)
This Single parts of front seat controls technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Countersunk head screw | M6X12 | 6 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||

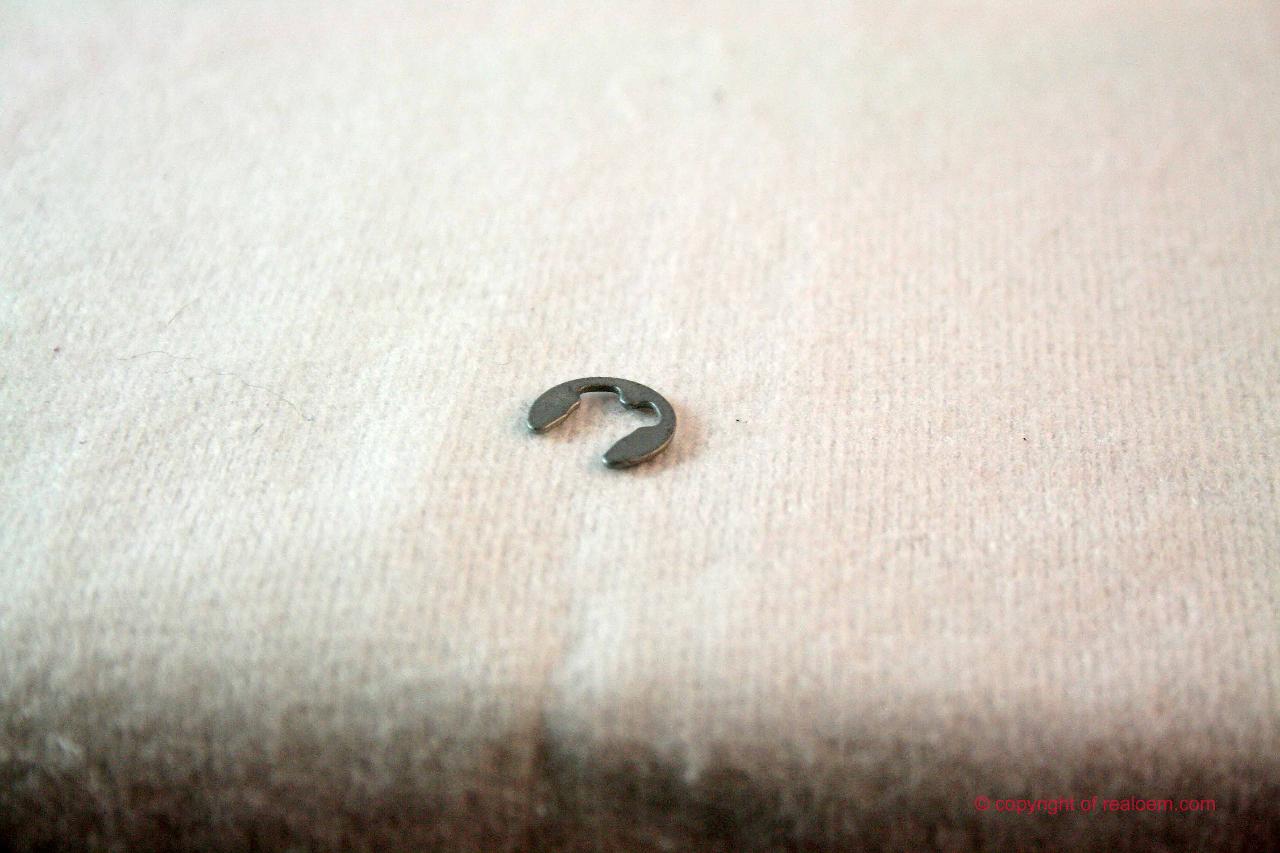

| 07 | Circlip | 6,0-ZNS3 | 2 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Tooth washer | A6,4 | 18 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Seat rail inner | 2 | 52101801459 | $297.61 | Shop at ECS Tuning | |||||
| 13 | Seat rail outer left | 1 | 52117602100 | ENDED | Shop at ECS Tuning | |||||
| 13 | Seat rail outer right | 1 | 52117602101 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cap | 2 | 52117602106 | ENDED | Shop at ECS Tuning | |||||
| 15 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 17 | Fillister-head screw | M6X18 | 8 | 02/1962 | 01/1972 | 07119919781 | ENDED | Shop at ECS Tuning | ||
| 19 | Recessed oval head sheet-metal screw | ST2,9X13 | 6 | 02/1962 | 01/1972 | 07119902413 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Single parts of front seat controls?

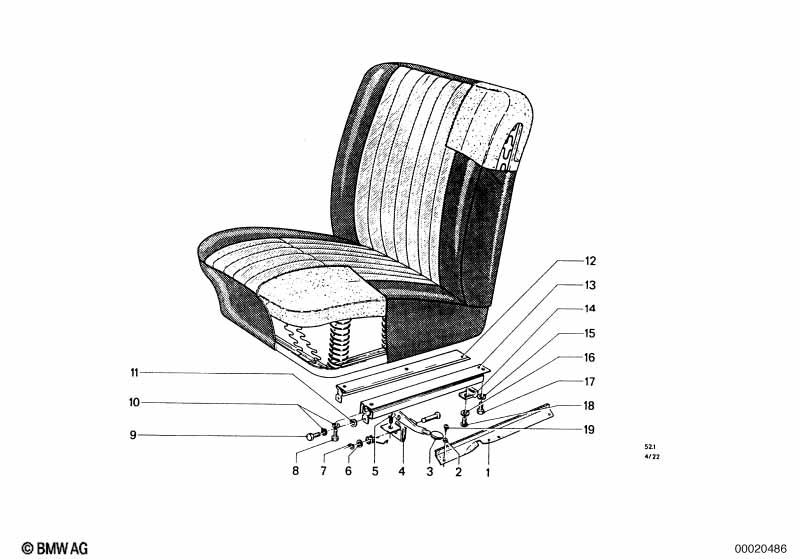

- This technical diagram illustrates the Single parts of front seat controls within the Seats group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Countersunk head screw (Part #52101817063).
- Which models use the hardware listed in this Single parts of front seat controls?
- The hardware and components featured in the Single parts of front seat controls are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Countersunk head screw (52101817063) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts of front seat controls assembly?
- Each item in the Single parts of front seat controls corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Countersunk head screw by locating its position on the schematic, which then links to the official BMW part number 52101817063 for the Seats section.
