Armrest front for BMW 2500-3.3Li 3.3L (1974)

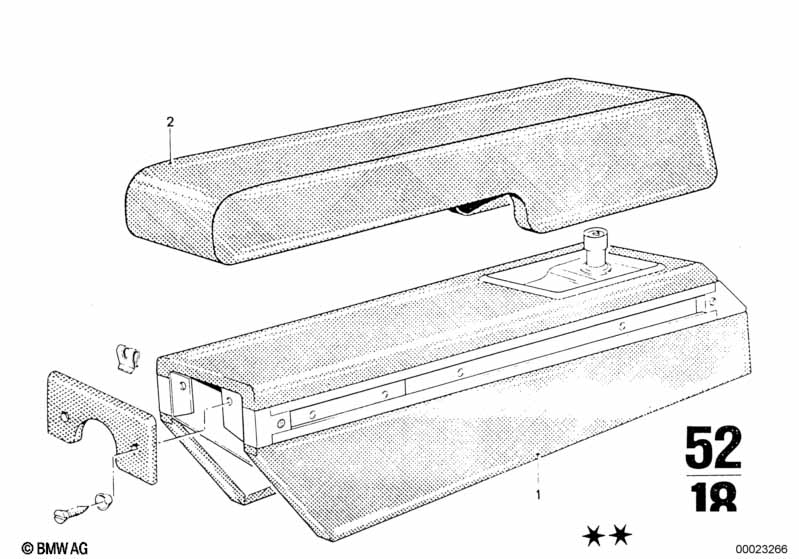

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest lower leather black | 9090 | 1 | 52101835457 | $209.81 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest | 1 | 52101835468 | ENDED | Shop at ECS Tuning | |||||
| 02 | Armrest upper leather black | 9090 | 1 | 52101835440 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest upper cloth black | 1 | 52101835451 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Armrest front?
- This technical diagram illustrates the Armrest front within the Seats group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Armrest lower leather black (Part #52101835457).
- Which models use the hardware listed in this Armrest front?
- The hardware and components featured in the Armrest front are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Armrest lower leather black (52101835457) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest front assembly?
- Each item in the Armrest front corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Armrest lower leather black by locating its position on the schematic, which then links to the official BMW part number 52101835457 for the Seats section.
