Armrest front for BMW 2500-3.3Li 3.3Li (1975)

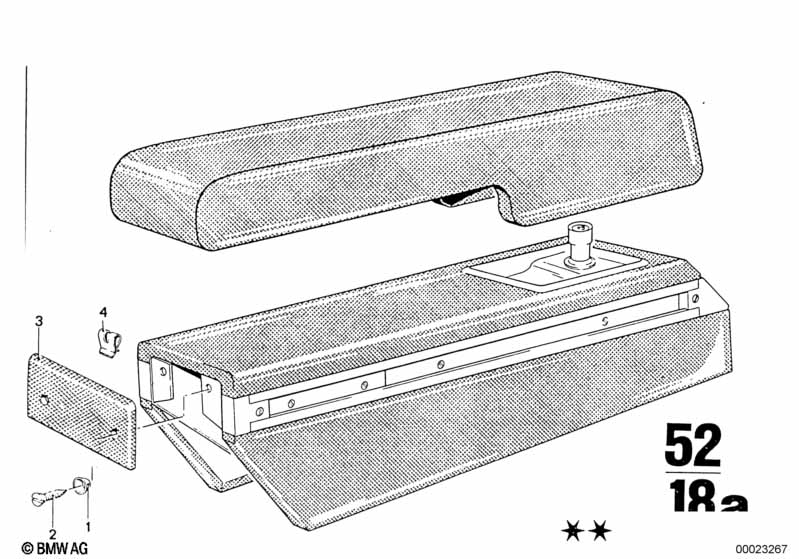

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 2 | 52101835470 | ENDED | Shop at ECS Tuning | |||||
| 02 | Sheet metal screw | 2 | 52101837817 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 52101842300 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 52101842309 | $65.10 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Armrest front?
- This technical diagram illustrates the Armrest front within the Seats group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #52101835470).
- Which models use the hardware listed in this Armrest front?
- The hardware and components featured in the Armrest front are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Washer (52101835470) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest front assembly?
- Each item in the Armrest front corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 52101835470 for the Seats section.
