Armrest front for BMW 2500-3.3Li 3.3Li (1975)

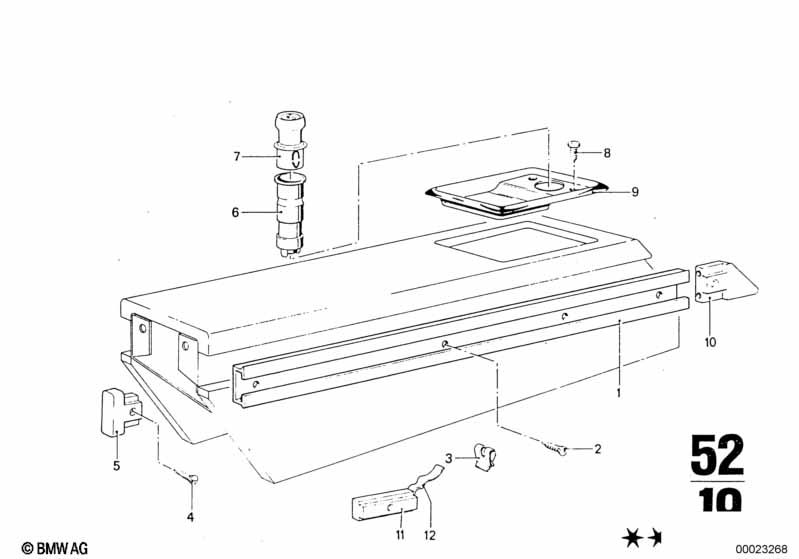

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide rail | 2 | 52101834303 | ENDED | Shop at ECS Tuning | |||||
| 02 | Csk.lenshead screw | B3,9X13 | 4 | 07119902225 | $0.41 | ENDED | Shop at ECS Tuning | |||
| 04 | Set recess.oval head sheet-metal screw20 | ST2,9X9,5 | 4 | 07509064405 | ENDED | Shop at ECS Tuning | ||||
| 05 | End piece | 2 | 52101834306 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cigarette lighter socket | 1 | 61341368728 | $48.94 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lighter element | 1 | 61341364532 | $18.67 | Shop at ECS Tuning | |||||
| 08 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 09 | Storing partition | 1 | 52101834331 | ENDED | Shop at ECS Tuning | |||||
| 10 | End piece | 1 | 52101834933 | ENDED | Shop at ECS Tuning | |||||
| 10 | End piece | 1 | 52101834934 | ENDED | Shop at ECS Tuning | |||||
| 11 | End piece | 1 | 52101837585 | ENDED | Shop at ECS Tuning | |||||
| 11 | End piece | 1 | 52101837586 | ENDED | Shop at ECS Tuning | |||||
| 12 | Spring | 2 | 52101834305 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Armrest front?
- This technical diagram illustrates the Armrest front within the Seats group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Guide rail (Part #52101834303).
- Which models use the hardware listed in this Armrest front?
- The hardware and components featured in the Armrest front are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Guide rail (52101834303) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest front assembly?
- Each item in the Armrest front corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Guide rail by locating its position on the schematic, which then links to the official BMW part number 52101834303 for the Seats section.
