Armrest front for BMW 2500-3.3Li 3.0L (1975)

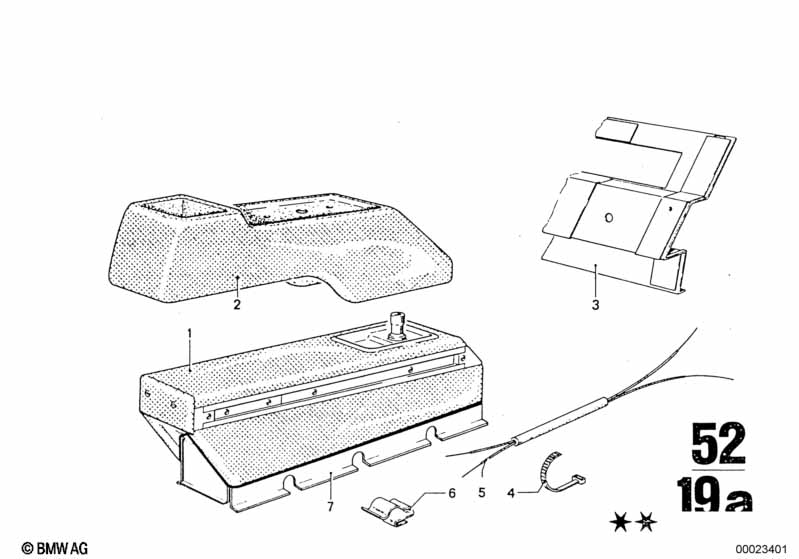

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Telephone |
=Yes |
|||||||||
| 01 | Armrest leather | 1 | 52101838200 | ENDED | Shop at ECS Tuning | |||||
| 01 | Seat cover leather white rear | 8181 | 1 | 52201840256 | ENDED | Shop at ECS Tuning | ||||
| 02 | Console | 1 | 52101838204 | ENDED | Shop at ECS Tuning | |||||
| 02 | Console | 1 | 52101840067 | ENDED | Shop at ECS Tuning | |||||
| 03 | Trim panel | 1 | 51461827209 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cable tie | L=292MM/B=4,8MM | 8 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Cable | 1 | 61121359936 | ENDED | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 07147202015 | Shop at ECS Tuning | ||||||
| 07 | Console | 1 | 01/1975 | 02/1977 | 41121852941 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
