Headrest front,adjustable for BMW 2500-3.3Li 3.3Li (1975)

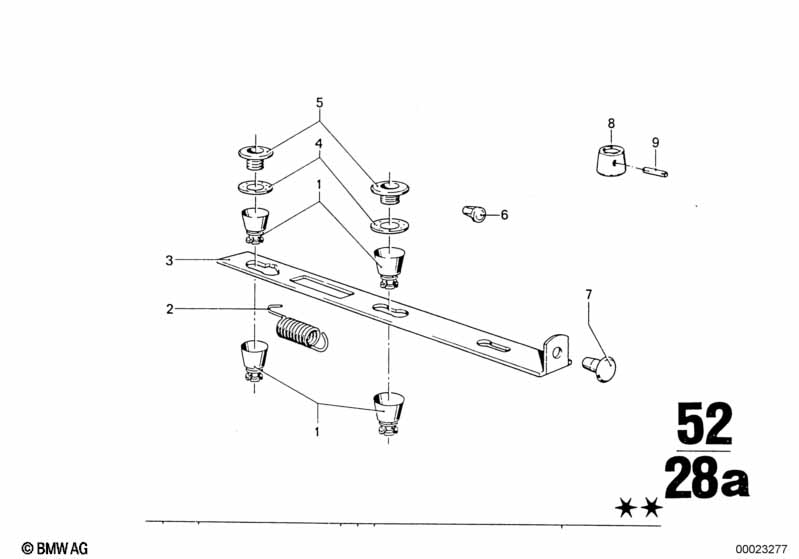

This Headrest front,adjustable technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sleeve | 8 | 52101838965 | $0.61 | Shop at ECS Tuning | |||||
| 02 | Spring | 2 | 52101838966 | $0.44 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock lever | 2 | 52101838094 | ENDED | Shop at ECS Tuning | |||||
| 04 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 05 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 06 | Clamp | 2 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 07 | Button | 2 | 52101838967 | $0.50 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 08 | Sleeve | 4 | 08/1968 | 02/1977 | 52101840414 | ENDED | Shop at ECS Tuning | |||
| 09 | Roll pin | 3X12 | 4 | 08/1968 | 02/1977 | 07119941316 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Headrest front,adjustable?
- This technical diagram illustrates the Headrest front,adjustable within the Seats group for the 2500-3.3Li 3.3Li produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Sleeve (Part #52101838965).
- Which models use the hardware listed in this Headrest front,adjustable?
- The hardware and components featured in the Headrest front,adjustable are specific to the 2500-3.3Li 3.3Li produced during 1975. These technical specifications ensure that parts like the Sleeve (52101838965) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headrest front,adjustable assembly?
- Each item in the Headrest front,adjustable corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Sleeve by locating its position on the schematic, which then links to the official BMW part number 52101838965 for the Seats section.
