Sliding roof for BMW 1500-2000CS 1800 (1969)

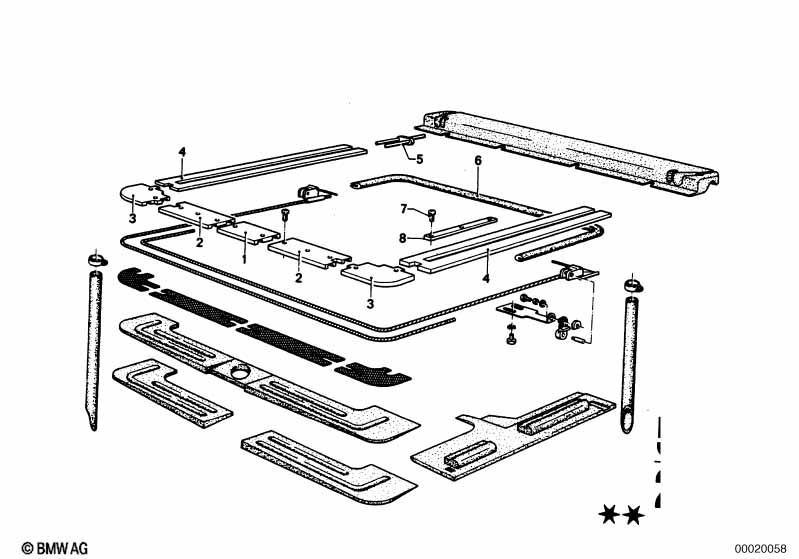

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering center | 1 | 54129734163 | ENDED | Shop at ECS Tuning | |||||
| 01 | Cover | 1 | 54139734164 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering left | 1 | 54129734165 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering right | 1 | 54129734166 | $72.71 | Shop at ECS Tuning | |||||
| 03 | Covering left | 1 | 54129734167 | Shop at ECS Tuning | ||||||
| 03 | Covering right | 1 | 54129734168 | ENDED | Shop at ECS Tuning | |||||
| 04 | Guide rail left | 1 | 02/1962 | 04/1974 | 54129734120 | ENDED | Shop at ECS Tuning | |||
| 05 | Holder | 1 | 54129734118 | $9.94 | ENDED | Shop at ECS Tuning | ||||
| 06 | Synthetic strip | X | 54129734126 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Recessed oval head sheet-metal screw | ST3,9X9,5 | 18 | 07119902454 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Intermediate piece | 2 | 54129434147 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
