Sliding roof for BMW 1500-2000CS 1800 (1969)

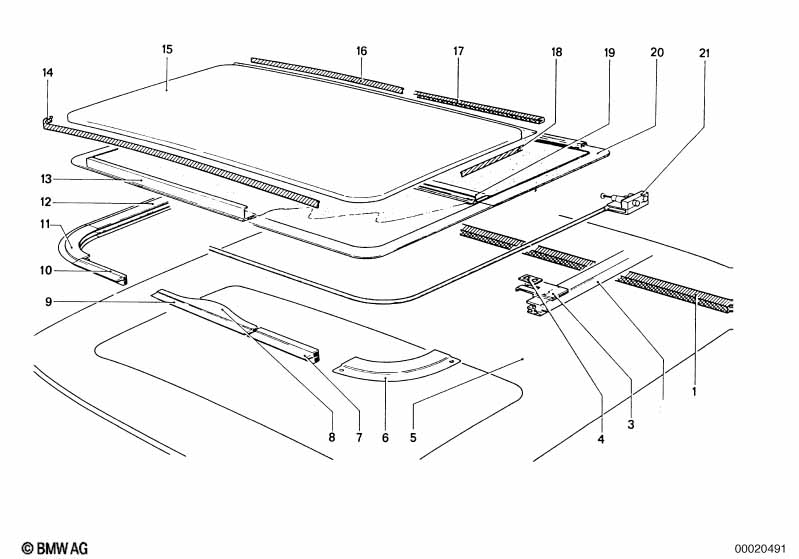

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 02 | Guide | 1 | 54129634146 | ENDED | Shop at ECS Tuning | |||||
| 03 | Holder | 1 | 54129634136 | ENDED | Shop at ECS Tuning | |||||
| 03 | Guide | 1 | 54129634137 | ENDED | Shop at ECS Tuning | |||||
| 04 | Securing plate | 2 | 54129634134 | ENDED | Shop at ECS Tuning | |||||
| 06 | Corner moulding | 1 | 54129634158 | ENDED | Shop at ECS Tuning | |||||
| 06 | Corner moulding, left | 1 | 54129634162 | ENDED | Shop at ECS Tuning | |||||
| 07 | Connection piece | 1 | 54129634150 | ENDED | Shop at ECS Tuning | |||||
| 07 | Connection piece | 1 | 54129634154 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 54129634170 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 54129634171 | ENDED | Shop at ECS Tuning | |||||
| 09 | Connection piece | 1 | 54129634172 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connection piece | 1 | 54129634151 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connection piece | 1 | 54129634155 | ENDED | Shop at ECS Tuning | |||||
| 11 | Corner moulding, right | 1 | 54129634159 | ENDED | Shop at ECS Tuning | |||||
| 11 | Corner moulding, right | 1 | 54129634163 | ENDED | Shop at ECS Tuning | |||||
| 12 | Cover | 1 | 54129634147 | ENDED | Shop at ECS Tuning | |||||
| 13 | Frame | 1 | 54129634142 | ENDED | Shop at ECS Tuning | |||||
| 14 | Gasket | 1 | 54129634125 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 54129634140 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket | 1 | 54129634124 | ENDED | Shop at ECS Tuning | |||||
| 17 | Gasket | 1 | 54129634122 | ENDED | Shop at ECS Tuning | |||||
| 19 | Reinforcement | 1 | 54129634144 | ENDED | Shop at ECS Tuning | |||||
| 20 | Ceiling frame | 1 | 51447670001 | ENDED | Shop at ECS Tuning | |||||
| 21 | Guide | 1 | 54129634127 | ENDED | Shop at ECS Tuning | |||||
| 21 | Guide | 1 | 54129634128 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Sliding roof?
- This technical diagram illustrates the Sliding roof within the Sliding Roof / Folding Top group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Guide (Part #54129634146).
- Which models use the hardware listed in this Sliding roof?
- The hardware and components featured in the Sliding roof are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Guide (54129634146) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sliding roof assembly?
- Each item in the Sliding roof corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Guide by locating its position on the schematic, which then links to the official BMW part number 54129634146 for the Sliding Roof / Folding Top section.
