Diagnostic adapter for BMW 1500-2000CS 1800 (1969)

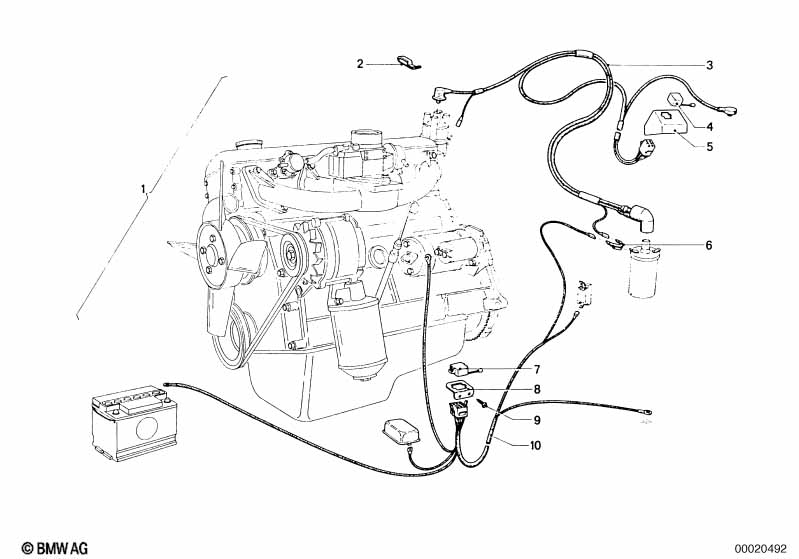

This Diagnostic adapter technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wiring set | 1 | 12121354552 | $11.27 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover lid | 1 | 12121353222 | ENDED | Shop at ECS Tuning | |||||
| 06 | Twin plug | B=6,4 | 1 | 61138061771 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover lid | 1 | 61131353187 | ENDED | Shop at ECS Tuning | |||||
| 08 | Support | 1 | 41141809421 | ENDED | Shop at ECS Tuning | |||||
| 09 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 10 | Wiring set | 1 | 61121354051 | ENDED | Shop at ECS Tuning |
