Wiring set for BMW 1500-2000CS 1800 (1969)

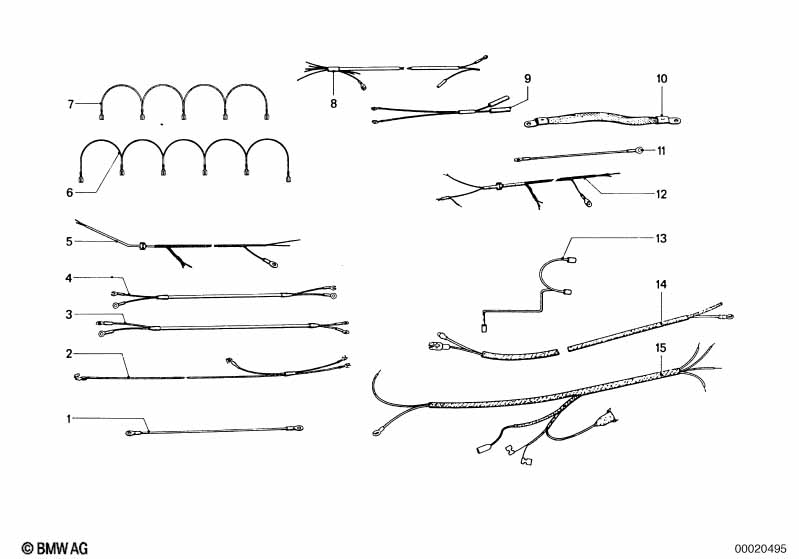

This Wiring set technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ground cable | 1 | 07/1968 | 01/1972 | 61121350296 | ENDED | Shop at ECS Tuning | |||
| 05 | Wiring set | 1 | 07/1968 | 08/1971 | 61121350996 | ENDED | Shop at ECS Tuning | |||
| 10 | Ground cable | 1 | 61128660175 | ENDED | Shop at ECS Tuning | |||||
| 13 | Wiring set | 1 | 02/1962 | 03/1971 | 61128660115 | ENDED | Shop at ECS Tuning | |||
| 13 | Wiring set | 1 | 02/1962 | 03/1971 | 61128660115 | ENDED | Shop at ECS Tuning |
