battery holder and mounting parts for BMW 1500-2000CS 1800 (1969)

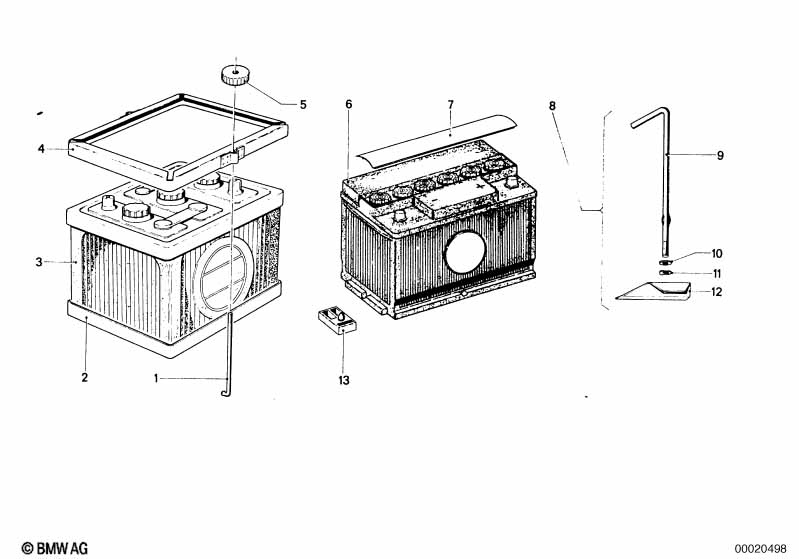

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Empty battery | 55AH | 1 | 61211362310 | ENDED | Shop at ECS Tuning | ||||
| 03 | Empty BMW battery | 46AH | 1 | 09/1965 | 01/1972 | 61218377123 | Shop at ECS Tuning | |||
| 04 | Frame | 1 | 61218642104 | ENDED | Shop at ECS Tuning | |||||
| 04 | Frame | 1 | 09/1965 | 01/1972 | 61218742100 | ENDED | Shop at ECS Tuning | |||
| 08 | Battery hold down | 232MM | 1 | 09/1965 | 01/1972 | 61211353680 | $8.52 | Shop at ECS Tuning | ||
| 09 | Battery hold down | 232MM | 1 | 09/1965 | 01/1972 | 61211353680 | $8.52 | Shop at ECS Tuning | ||
| 11 | Axial securing clip | 15X5,7MM | 1 | 09/1965 | 01/1972 | 07149158226 | Shop at ECS Tuning | |||
| 12 | Chain tensioner | 1 | 09/1965 | 01/1972 | 61211350100 | ENDED | Shop at ECS Tuning | |||
| 13 | Spacer | 1 | 09/1965 | 01/1972 | 61211350825 | $1.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 battery holder and mounting parts?
- This technical diagram illustrates the battery holder and mounting parts within the Vehicle electrical system group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Empty battery (Part #61211362310).
- Which models use the hardware listed in this battery holder and mounting parts?
- The hardware and components featured in the battery holder and mounting parts are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Empty battery (61211362310) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the battery holder and mounting parts assembly?
- Each item in the battery holder and mounting parts corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Empty battery by locating its position on the schematic, which then links to the official BMW part number 61211362310 for the Vehicle electrical system section.
