Switch for BMW 1500-2000CS 1800 (1969)

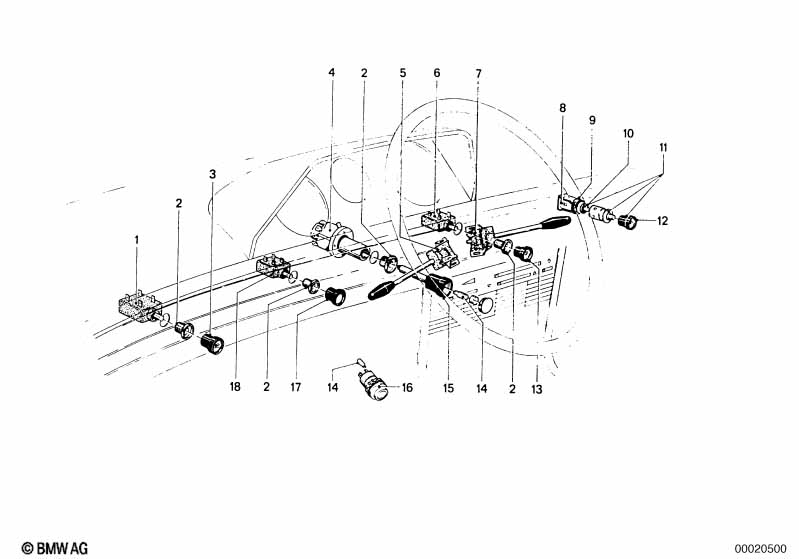

This Switch technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light switch | 1 | 61311351290 | $187.49 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim ring | 4 | 61311351051 | ENDED | Shop at ECS Tuning | |||||
| 03 | Button | LICHT | 1 | 61311351048 | $16.77 | +core | Shop at ECS Tuning | |||
| 04 | Switch | 1 | 61311351061 | ENDED | Shop at ECS Tuning | |||||
| 05 | Switch | 1 | 61311351020 | $189.72 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiper switch | 1 | 61311351197 | ENDED | Shop at ECS Tuning | |||||
| 07 | Switch | 1 | 61311351019 | $93.43 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cigarette lighter socket | 1 | 61341351422 | ENDED | Shop at ECS Tuning | |||||
| 09 | Trim ring | 1 | 61341353346 | ENDED | Shop at ECS Tuning | |||||
| 10 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||

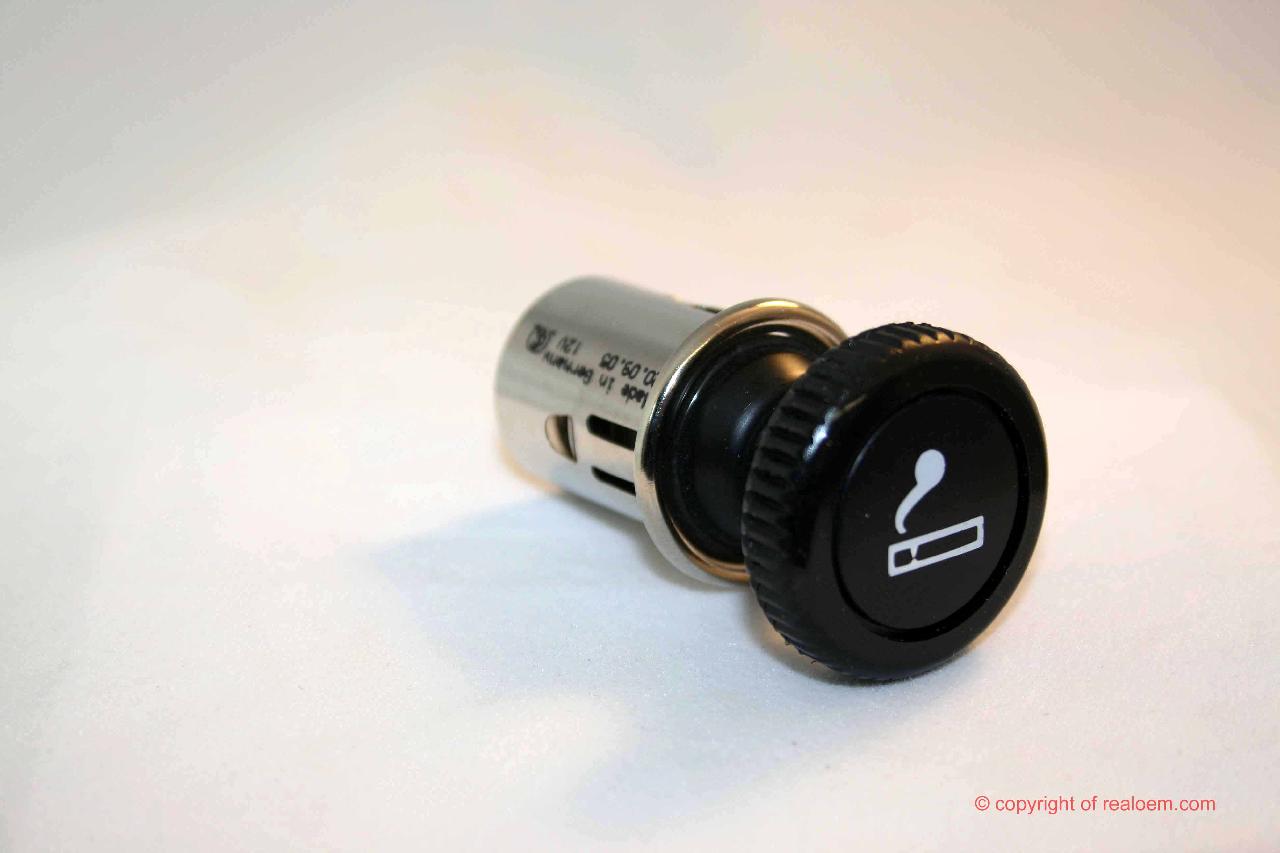

| 11 | Lighter element | 1 | 61341364532 | $18.67 | Shop at ECS Tuning | |||||
| 12 | Button | ZIGARETTE | 1 | 61341351049 | $11.39 | Shop at ECS Tuning | ||||
| 13 | Button | 1 | 61311351057 | $14.55 | Shop at ECS Tuning | |||||
| 14 | Bulb | 1,2W | 1 | 62149557328 | $2.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Button | 1 | 61311351062 | ENDED | Shop at ECS Tuning | |||||
| Special accessories | ||||||||||
| 16 | Switch heated rear window | 1 | 61311353590 | $86.37 | Shop at ECS Tuning | |||||
| 17 | Button | 1 | 61311351057 | $14.55 | Shop at ECS Tuning | |||||
| 18 | Switch | 1 | 61311351169 | $46.87 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
