Horn for BMW 1500-2000CS 1800 (1969)

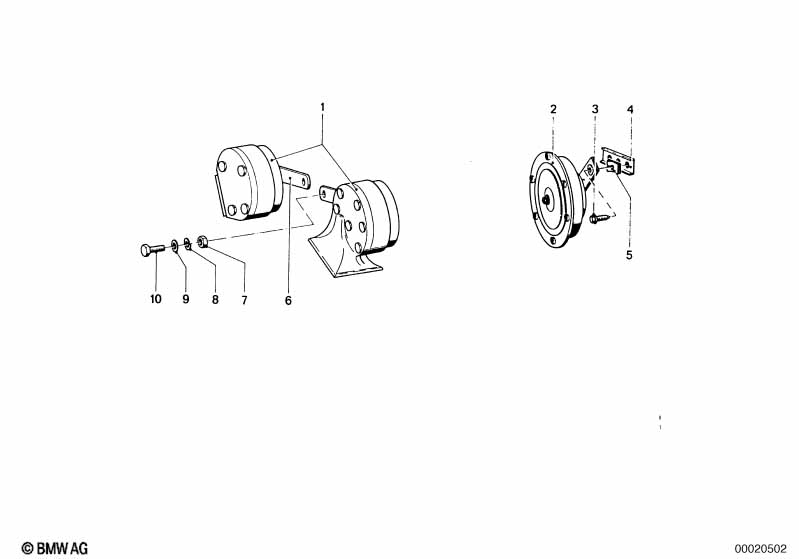

This Horn technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn | FIAMM 410HZ | 1 | 09/1965 | 01/1972 | 61337163982 | ENDED | Shop at ECS Tuning | ||
| 01 | Horn | FIAMM 510HZ | 1 | 09/1965 | 01/1972 | 61337163983 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Horn (Part #61337163982).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Horn (61337163982) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Horn by locating its position on the schematic, which then links to the official BMW part number 61337163982 for the Vehicle electrical system section.
