Cable harness for BMW 2500-3.3Li 2800 (1971)

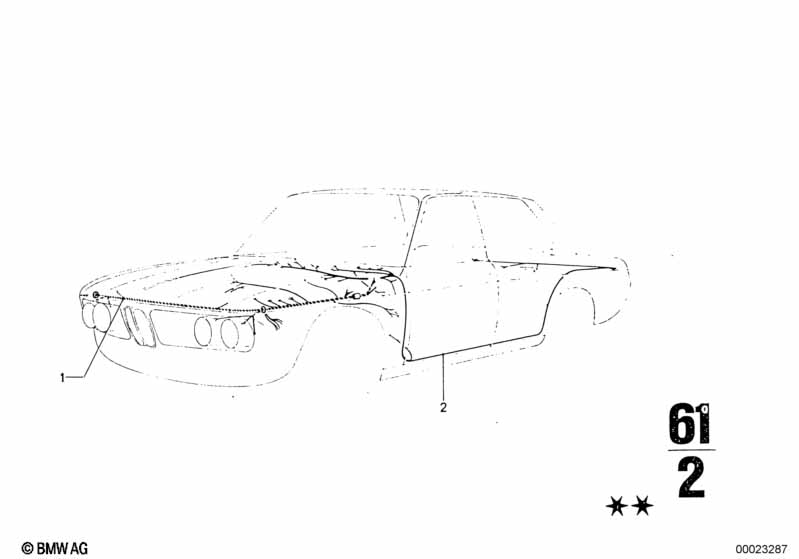

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front section | 1 | 08/1968 | 09/1973 | 61111353431 | ENDED | Shop at ECS Tuning | |||
| 01 | Wiring harness, front section | 1 | 05/1971 | 09/1973 | 61111355428 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 01 | Cable harness | 1 | 08/1968 | 09/1973 | 61111354057 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector rear | 1 | 08/1968 | 09/1973 | 61111351718 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector rear | 1 | 08/1968 | 09/1973 | 61111352929 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector rear | 1 | 08/1968 | 09/1973 | 61111353384 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector rear | 1 | 05/1971 | 09/1973 | 61111354021 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
