Cable harness for BMW 2500-3.3Li 3.3Li (1975)

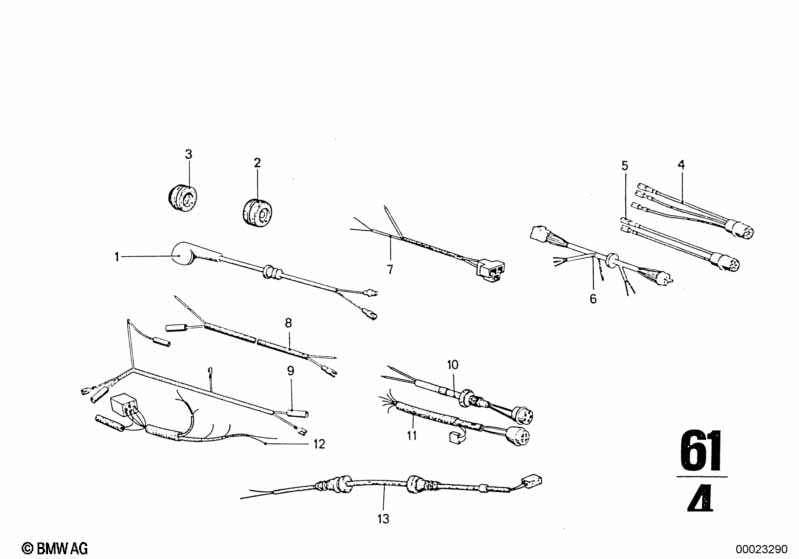

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable electr.petrol pump | 1 | 09/1974 | 02/1977 | 61121359180 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber grommet | 1 | 63128071754 | $1.13 | Shop at ECS Tuning | |||||
| 03 | Cable grommet | 1 | 61131350914 | $1.15 | Shop at ECS Tuning | |||||
| 05 | Wiring set | 1 | 08/1968 | 02/1977 | 61121354029 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable | 1 | 09/1973 | 02/1977 | 61121359922 | ENDED | Shop at ECS Tuning | |||
| 13 | Cable | 1 | 08/1968 | 02/1977 | 61121358741 | $13.06 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
