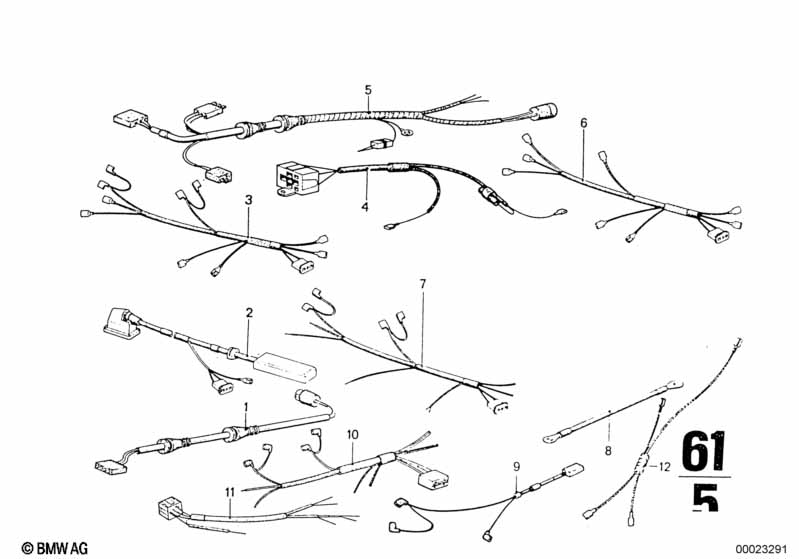

Cable harness for BMW 2500-3.3Li 2800 (1971)
This Cable harness technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable | 1 | 08/1968 | 02/1977 | 61121360801 | $12.61 | Shop at ECS Tuning | |||
| 03 | Wiring set | 1 | 02/1969 | 02/1977 | 61121355250 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable | 1 | 08/1968 | 02/1977 | 61121360800 | $97.09 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 09 | Cable | 1 | 08/1968 | 02/1977 | 61121360016 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable | 1 | 08/1968 | 02/1977 | 61121359041 | ENDED | Shop at ECS Tuning | |||
| 12 | Cable trunk light | 1 | 61121350970 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
