Relay for BMW 2500-3.3Li 2800 (1971)

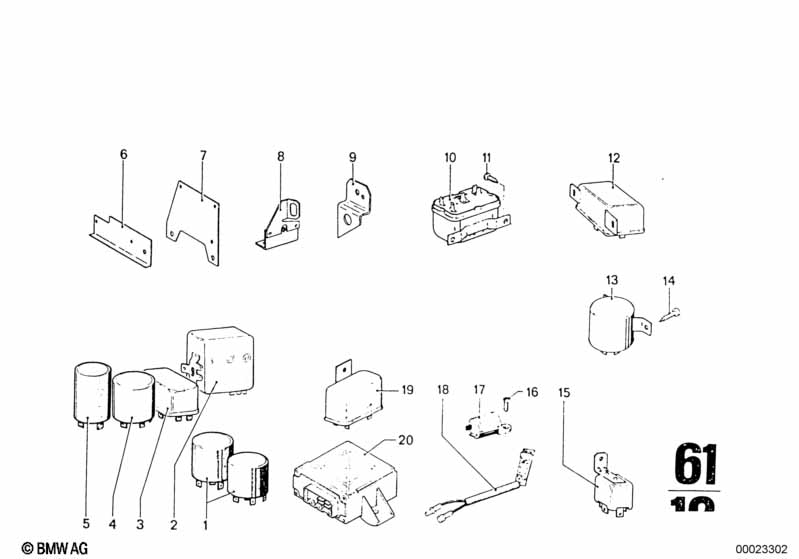

This Relay technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay, make contact, white green | 2 | 08/1968 | 02/1977 | 61368373700 | $13.96 | Shop at ECS Tuning | |||
| 02 | Hazard warning relay | 1 | 61311365609 | Shop at ECS Tuning | ||||||
| 03 | Relay | 1 | 08/1968 | 02/1977 | 61311351294 | ENDED | Shop at ECS Tuning | |||
| 04 | Relay | 1 | 08/1968 | 02/1977 | 61311351248 | ENDED | Shop at ECS Tuning | |||
| 05 | Relay | 1 | 08/1968 | 02/1977 | 61311350569 | $53.85 | ENDED | Shop at ECS Tuning | ||
| 05 | Wiper-wash-interval control unit | 1 | 08/1968 | 02/1977 | 61311357904 | ENDED | Shop at ECS Tuning | |||
| 06 | Holder | 1 | 08/1968 | 02/1977 | 61311355261 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 02/1969 | 02/1977 | 61311354357 | ENDED | Shop at ECS Tuning | |||
| 10 | Starter motor relay | 1 | 08/1968 | 02/1977 | 61319059177 | $26.11 | Shop at ECS Tuning | |||
| 11 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 08/1968 | 02/1977 | 07119901200 | $0.17 | Shop at ECS Tuning | ||
| 12 | Relay, change-over contact,signal violet | 1 | 08/1968 | 02/1977 | 61361388911 | $13.96 | Shop at ECS Tuning | |||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 15 | Relay | 1 | 08/1968 | 02/1977 | 61321358198 | +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
