Wiper for BMW 2500-3.3Li 3.0L (1975)
This Wiper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

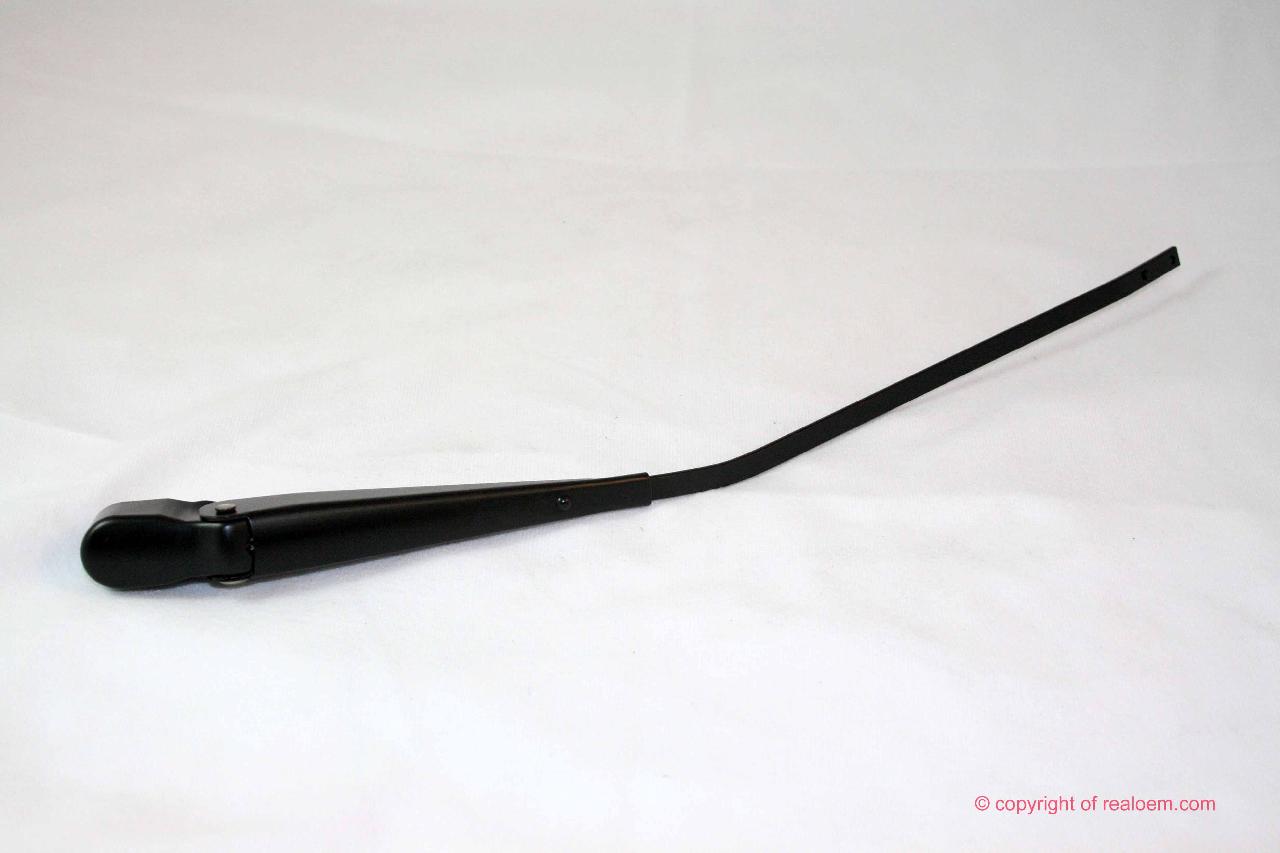

| 01 | Wiper arm | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611359120 | $132.11 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Wave washer | 8,4X15-ZNS3 | 1 | 09/1973 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| -- | Hex nut | M8-8-ZNNIV SI | 1 | 09/1973 | 02/1977 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 02 | Wiper blade | BOSCH 380 BLACK | 2 | 09/1973 | 02/1977 | 61611357254 | $22.79 | ENDED | Shop at ECS Tuning | |
| 03 | Wiper rubber | 15" | 2 | 09/1973 | 02/1977 | 61611352734 | $19.63 | Shop at ECS Tuning | ||
| 04 | Wiper arm | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611359120 | $132.11 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Wave washer | 8,4X15-ZNS3 | 1 | 09/1973 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| -- | Hex nut | M8-8-ZNNIV SI | 1 | 09/1973 | 02/1977 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
