Wiper for BMW 2500-3.3Li 2800 (1969)

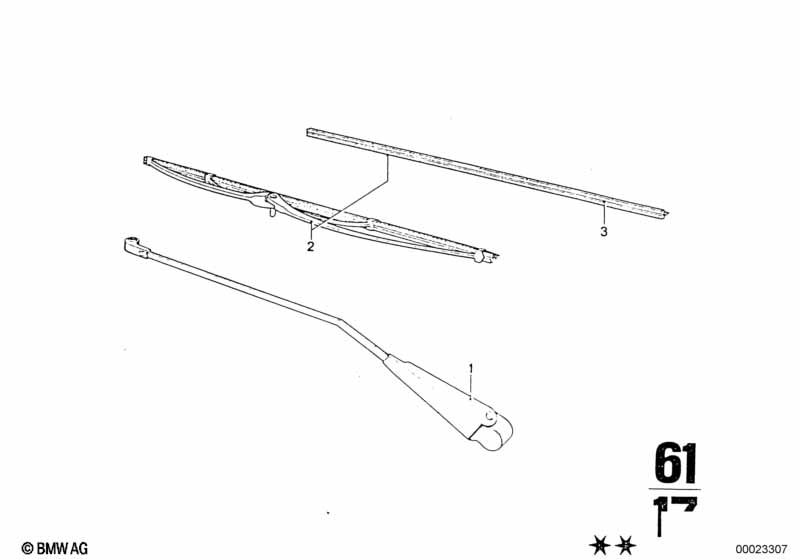

This Wiper technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm | 2 | 61611361310 | $56.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set of wiper blades | 2 | 61619069195 | $37.38 | Shop at ECS Tuning | |||||
| 03 | Wiper rubber | 2 | 61618217711 | $15.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Wiper?
- This technical diagram illustrates the Wiper within the Vehicle electrical system group for the 2500-3.3Li 2800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Wiper arm (Part #61611361310).
- Which models use the hardware listed in this Wiper?
- The hardware and components featured in the Wiper are specific to the 2500-3.3Li 2800 produced during 1969. These technical specifications ensure that parts like the Wiper arm (61611361310) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiper assembly?
- Each item in the Wiper corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Wiper arm by locating its position on the schematic, which then links to the official BMW part number 61611361310 for the Vehicle electrical system section.
