Speedo cable for BMW 2500-3.3Li 3.3L (1974)

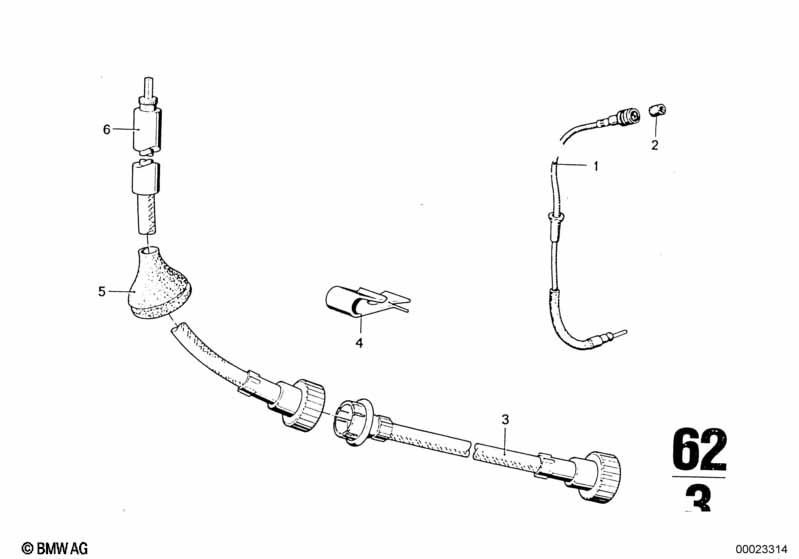

This Speedo cable technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive Shaft | 1 | 07/1969 | 02/1977 | 62121352068 | $49.38 | ENDED | Shop at ECS Tuning | ||

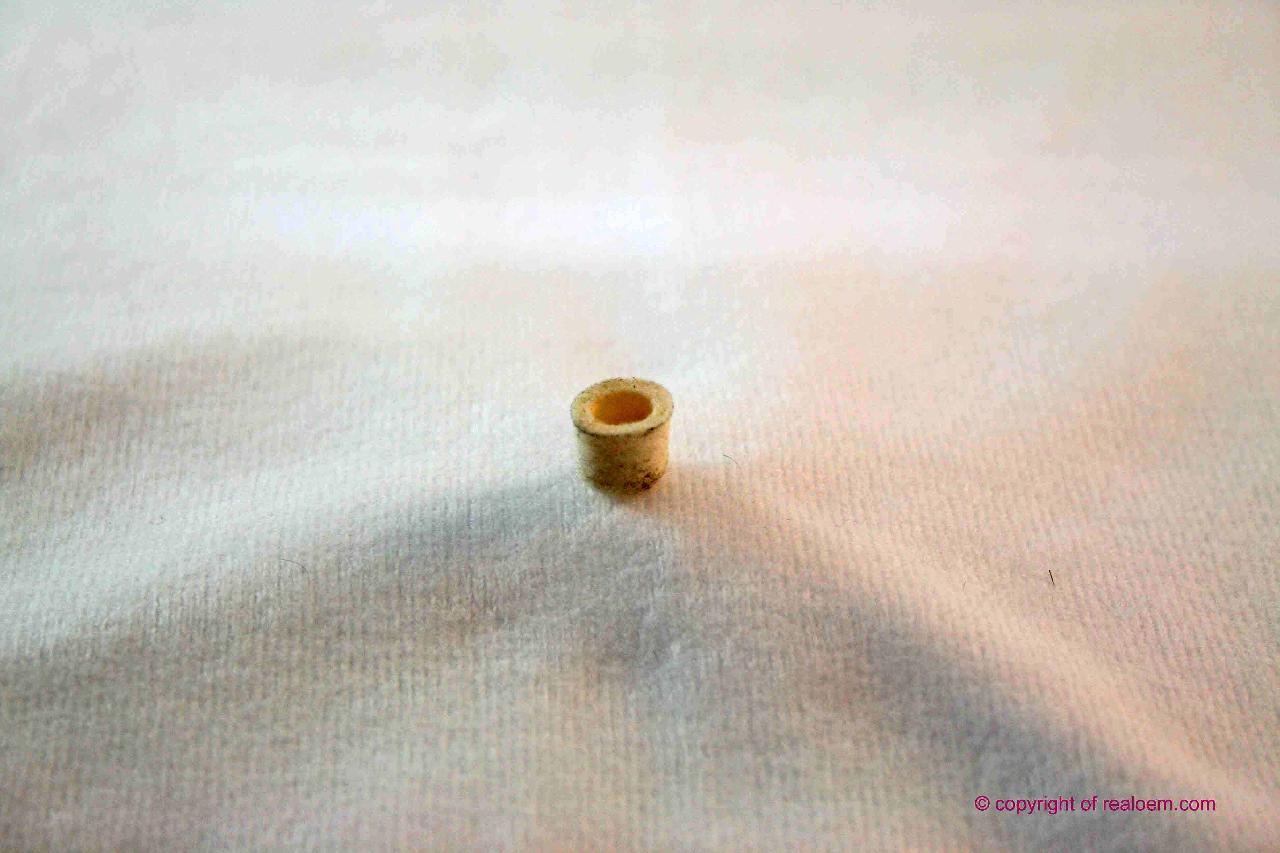

| 02 | Feltring | 1 | 62121354210 | $2.00 | Shop at ECS Tuning | |||||
| 04 | Clamp | 3 | 62121358247 | $0.27 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 1 | 62121359329 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Speedo cable?
- This technical diagram illustrates the Speedo cable within the Instruments, Measuring systems group for the 2500-3.3Li 3.3L produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Drive Shaft (Part #62121352068).
- Which models use the hardware listed in this Speedo cable?
- The hardware and components featured in the Speedo cable are specific to the 2500-3.3Li 3.3L produced during 1974. These technical specifications ensure that parts like the Drive Shaft (62121352068) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Speedo cable assembly?
- Each item in the Speedo cable corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Drive Shaft by locating its position on the schematic, which then links to the official BMW part number 62121352068 for the Instruments, Measuring systems section.
