Headlight for BMW 1500-2000CS 1800 (1969)

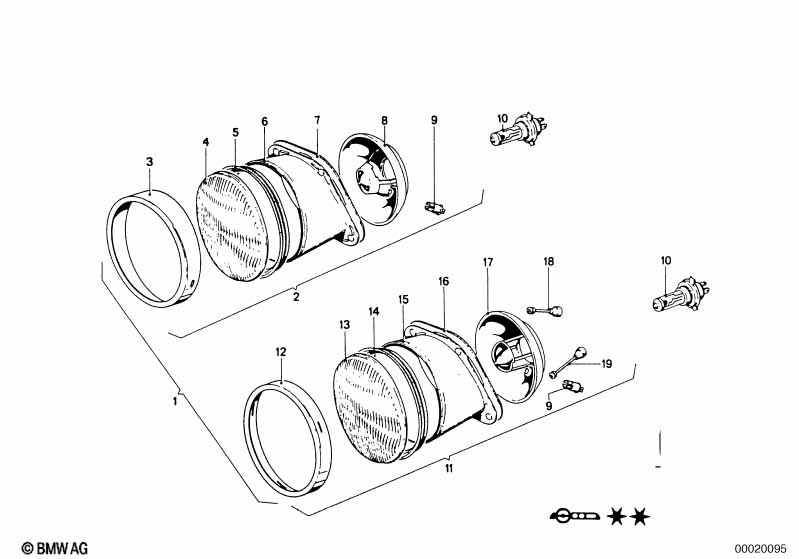

This Headlight technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Gasket | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 05 | Gasket | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 06 | Supporting ring | BOSCH | 2 | 63121357189 | ENDED | Shop at ECS Tuning | ||||
| 06 | Supporting ring | BOSCH | 2 | 63121357189 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reflector | H4 BOSCH | 2 | 63121355003 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 08 | Reflector | H4 BOSCH | 2 | 63121355003 | $90.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Bulb socket | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 09 | Bulb socket | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 10 | Bulb | H4 | 2 | 01/1966 | 07/1977 | 63121354619 | $13.63 | Shop at ECS Tuning | ||
| 11 | Headlight | H4 HELLA RHD | 2 | 04/1964 | 08/1973 | 63121356783 | ENDED | Shop at ECS Tuning | ||
| 14 | Gasket | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 14 | Gasket | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 15 | Gasket | HELLA | 2 | 63128650135 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket | HELLA | 2 | 63128650135 | ENDED | Shop at ECS Tuning | ||||
| 16 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 16 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 18 | Adjusting screw | 2 | 63128650137 | ENDED | Shop at ECS Tuning | |||||
| 18 | Adjusting screw | 2 | 63128650137 | ENDED | Shop at ECS Tuning | |||||
| 19 | Adjusting screw | 2 | 63128650138 | ENDED | Shop at ECS Tuning | |||||
| 19 | Adjusting screw | 2 | 63128650138 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Gasket (Part #63128650131).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Gasket (63128650131) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Gasket by locating its position on the schematic, which then links to the official BMW part number 63128650131 for the Lighting section.
