Headlight for BMW 1500-2000CS 1800 (1969)

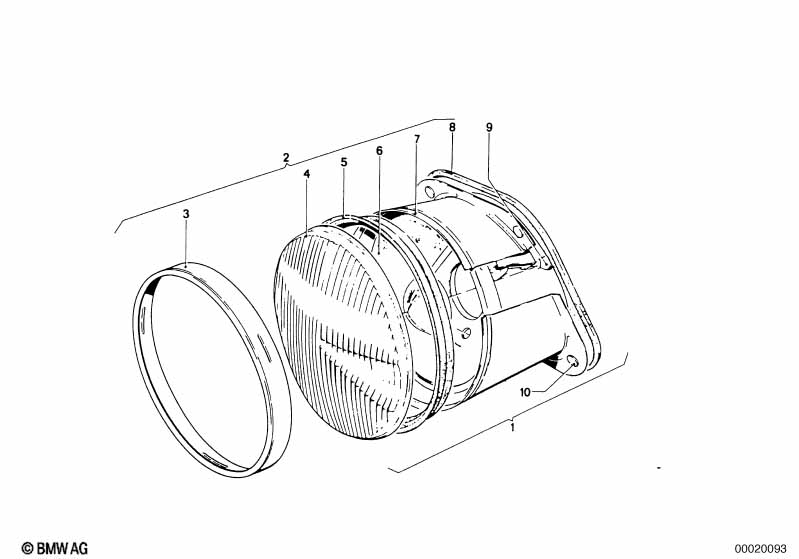

This Headlight technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight | HELLA RHD | 2 | 04/1964 | 08/1973 | 63128650030 | $224.32 | ENDED | Shop at ECS Tuning | |
| 04 | Lamp lens | HELLA RHD | 2 | 04/1964 | 08/1973 | 63128650121 | $24.83 | Shop at ECS Tuning | ||
| 05 | Gasket | BOSCH | 2 | 03/1966 | 08/1973 | 63128650131 | $7.92 | Shop at ECS Tuning | ||
| 05 | Gasket | BOSCH | 2 | 03/1966 | 08/1973 | 63128650131 | $7.92 | Shop at ECS Tuning | ||
| 07 | Supporting ring | BOSCH | 2 | 63121357189 | ENDED | Shop at ECS Tuning | ||||
| 07 | Supporting ring | BOSCH | 2 | 63121357189 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 09 | Adjusting screw | 2 | 63128650137 | ENDED | Shop at ECS Tuning | |||||
| 09 | Adjusting screw | 2 | 63128650137 | ENDED | Shop at ECS Tuning | |||||
| 09 | Adjusting screw | 2 | 63128650138 | ENDED | Shop at ECS Tuning | |||||
| 09 | Adjusting screw | 2 | 63128650138 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 63128650147 | $1.14 | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 63128650147 | $1.14 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
