Additional lights and side marker lights for BMW 1500-2000CS 2000 (1969)
This Additional lights and side marker lights technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

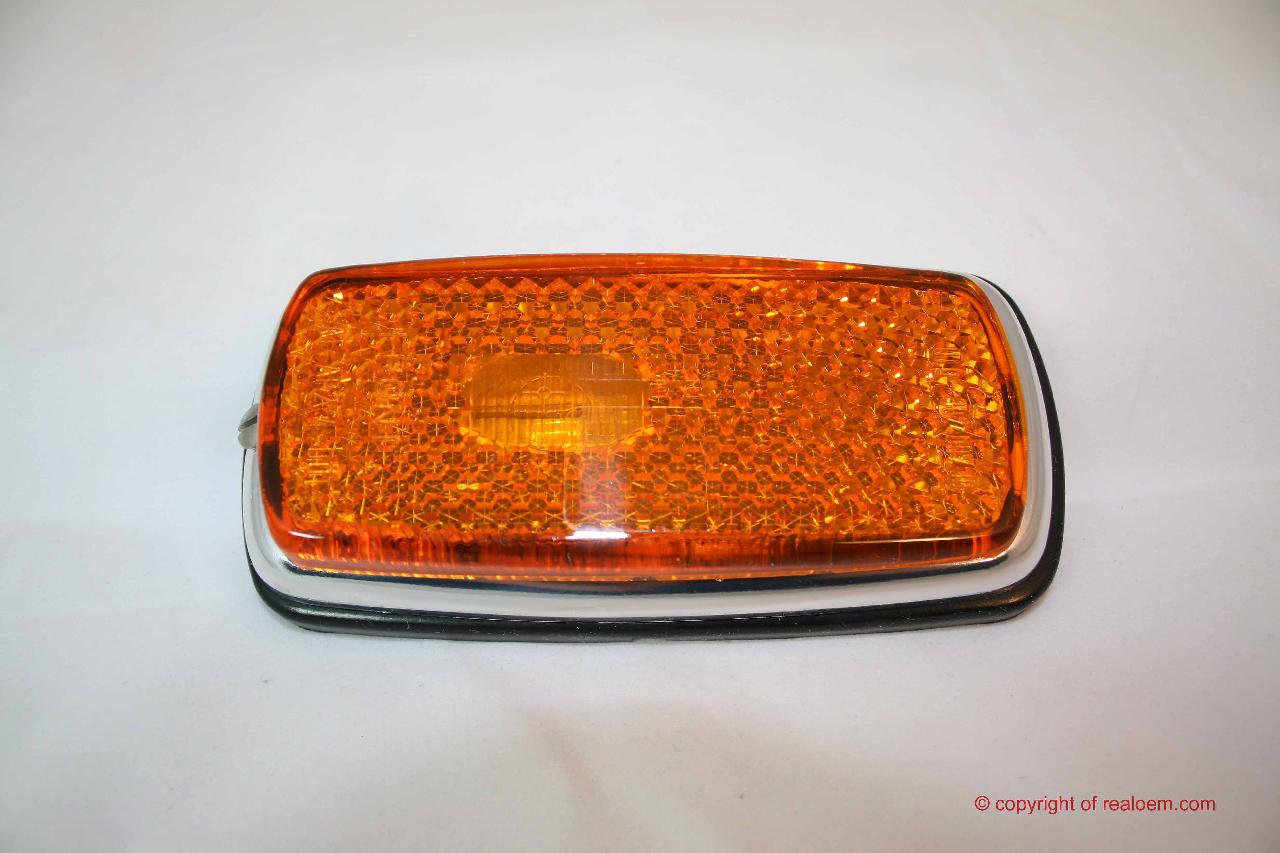

| 01 | Side marker | 1 | 63141351895 | $116.74 | ENDED | Shop at ECS Tuning | ||||
| 01 | Side reflector front | RECHTS | 1 | 63141351896 | $116.74 | ENDED | Shop at ECS Tuning | |||
| 02 | Base | 1 | 63141352947 | ENDED | Shop at ECS Tuning | |||||
| 02 | Base | 1 | 63141352948 | $6.31 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket | 4 | 63141352938 | ENDED | Shop at ECS Tuning | |||||
| 04 | Side reflector front | 8 | 63141352937 | $42.64 | +core | Shop at ECS Tuning | ||||

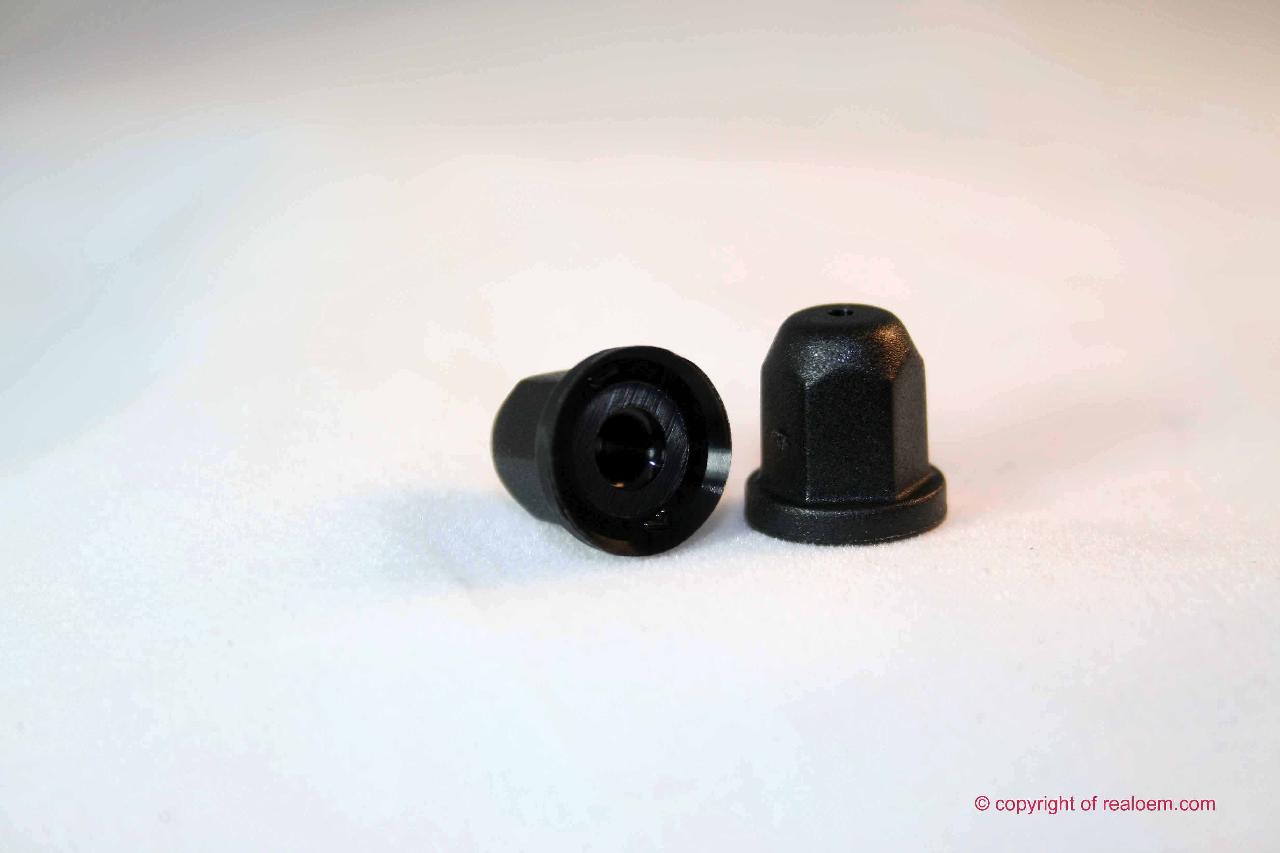

| 05 | Cap nut | M4 | 8 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Wiring set | 1 | 61121353085 | ENDED | Shop at ECS Tuning | |||||
| 07 | Side marker light | 1 | 63141352989 | $115.39 | Shop at ECS Tuning | |||||
| 07 | Side marker light, rear, right | 1 | 63141352990 | $115.39 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Bulb socket | 1 | 63141352991 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bulb socket | 1 | 63141352992 | ENDED | Shop at ECS Tuning | |||||
| 10 | Protection cap | 4 | 63141353027 | ENDED | Shop at ECS Tuning | |||||
| 11 | Side marker | 4 | 63141352952 | $14.17 | Shop at ECS Tuning | |||||
| 12 | Bulb | 12V 4W | 2 | 07509063576 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Reflector | 1 | 63141353055 | $51.98 | +core | Shop at ECS Tuning | ||||
| 13 | Reflector | 1 | 63141353056 | $51.98 | ENDED, +core | Shop at ECS Tuning | ||||
| 14 | Base | 1 | 63141353061 | ENDED | Shop at ECS Tuning | |||||
| 14 | Base | 1 | 63141353062 | ENDED | Shop at ECS Tuning | |||||
| 15 | Bulb | 3W | 2 | 51161873558 | $2.17 | ENDED | Shop at ECS Tuning | |||
| 16 | Bulb socket | 2 | 63261352166 | ENDED | Shop at ECS Tuning | |||||

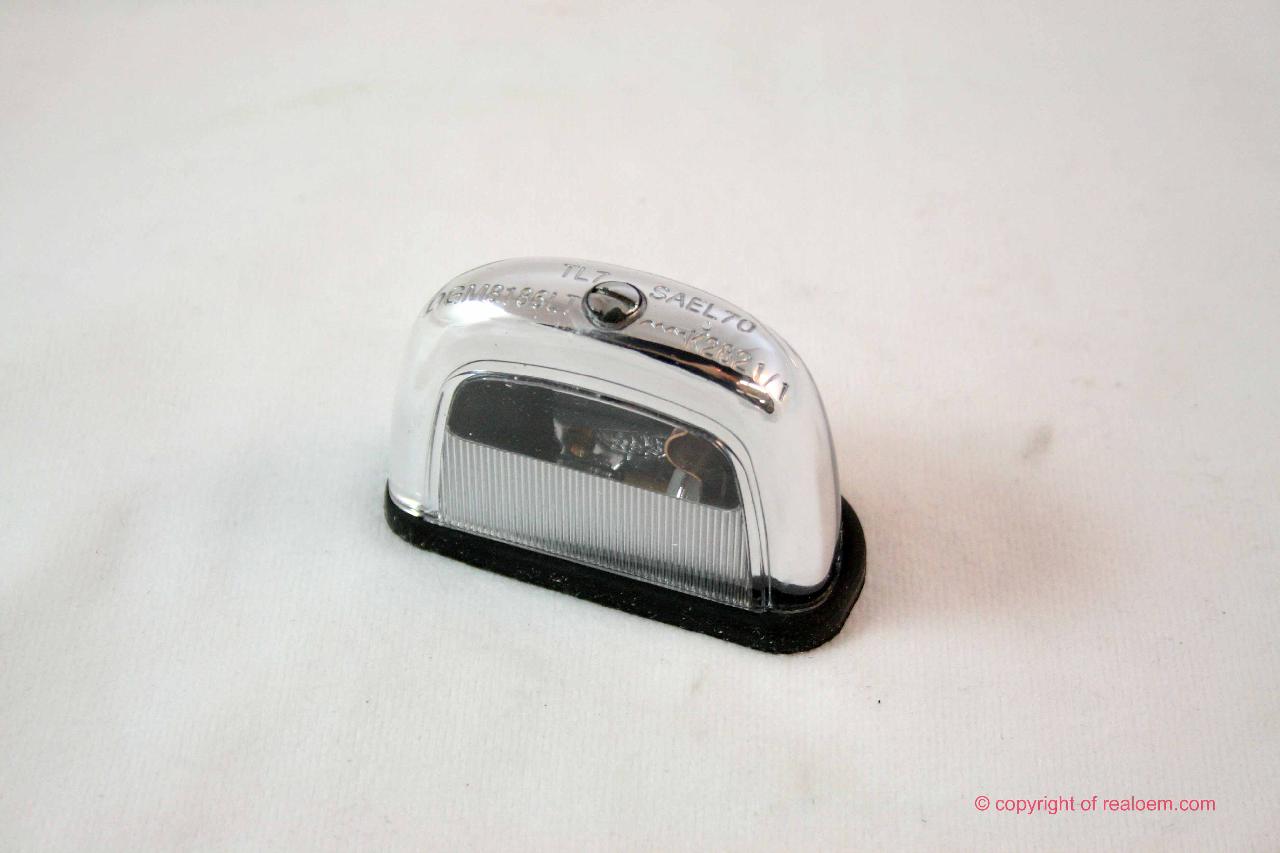

| 17 | Registration plate light | 2 | 63268777102 | $36.56 | ENDED | Shop at ECS Tuning | ||||
| 18 | Base | 2 | 63261352168 | ENDED | Shop at ECS Tuning | |||||
| 19 | Registration plate light | 2 | 63268777102 | $36.56 | ENDED | Shop at ECS Tuning | ||||
| 20 | Holder | 1 | 63268477106 | $2.78 | Shop at ECS Tuning | |||||
| 20 | Holder | 1 | 63268477107 | $2.74 | Shop at ECS Tuning | |||||

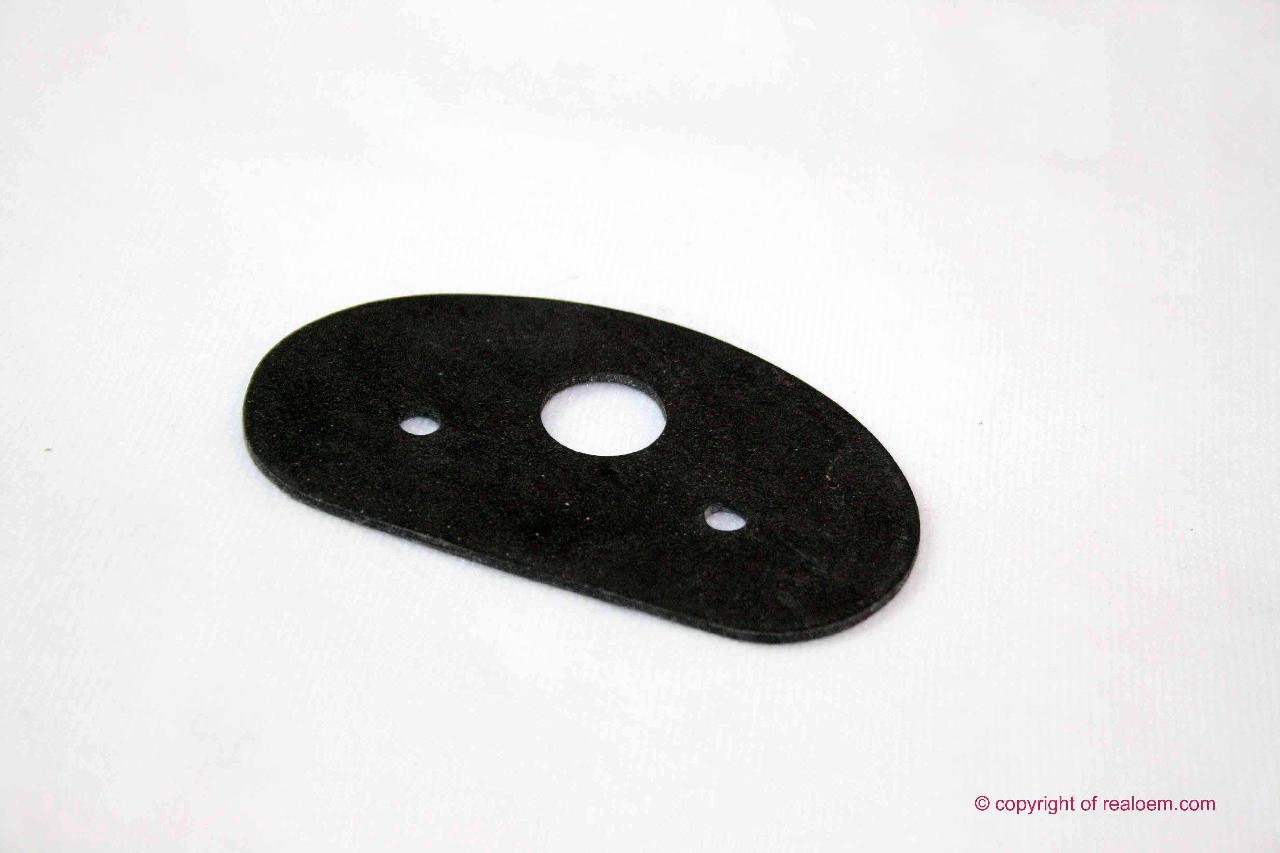

| 21 | Base | 2 | 63268477105 | $2.78 | ENDED | Shop at ECS Tuning | ||||
| 22 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 23 | Set wave washer 25 | B4 | 4 | 07509064029 | ENDED | Shop at ECS Tuning | ||||
| 24 | Set fillister head screw 20 | M4X10 | 4 | 07509064414 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000 Additional lights and side marker lights?

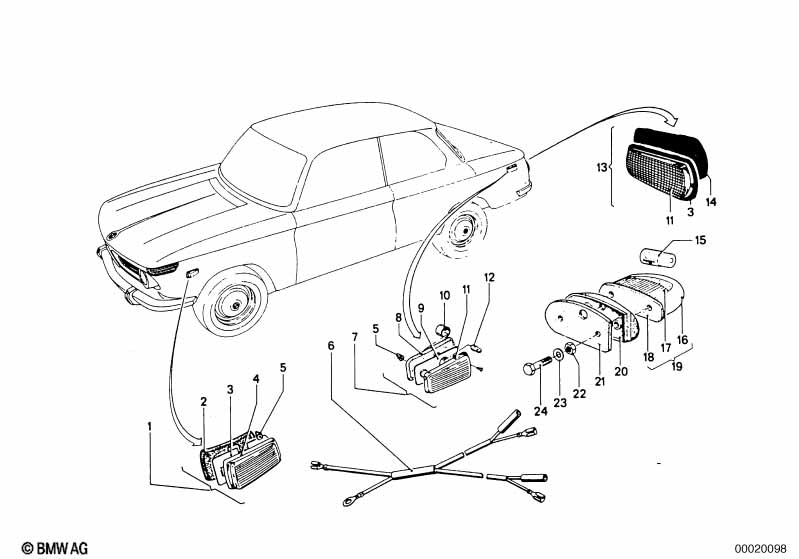

- This technical diagram illustrates the Additional lights and side marker lights within the Lighting group for the 1500-2000CS 2000 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Side marker (Part #63141351895).
