Headlight for BMW 1500-2000CS 2000 (1969)

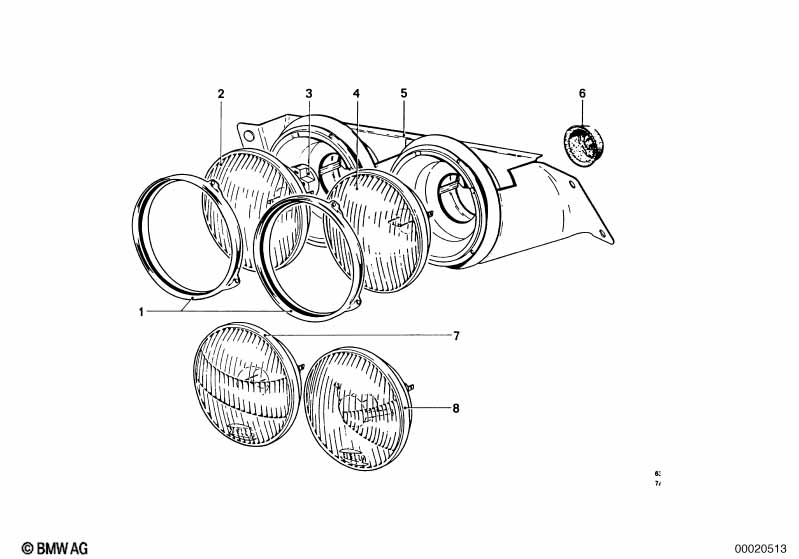

This Headlight technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glass holding frame | 4 | 63121362477 | $32.43 | Shop at ECS Tuning | |||||
| 02 | High beam insert (sealed beam) | 2 | 63118750240 | $27.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Low beam insert (sealed beam) | 2 | 63121373059 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
