Front turn indicator for BMW 1500-2000CS 1800 (1969)

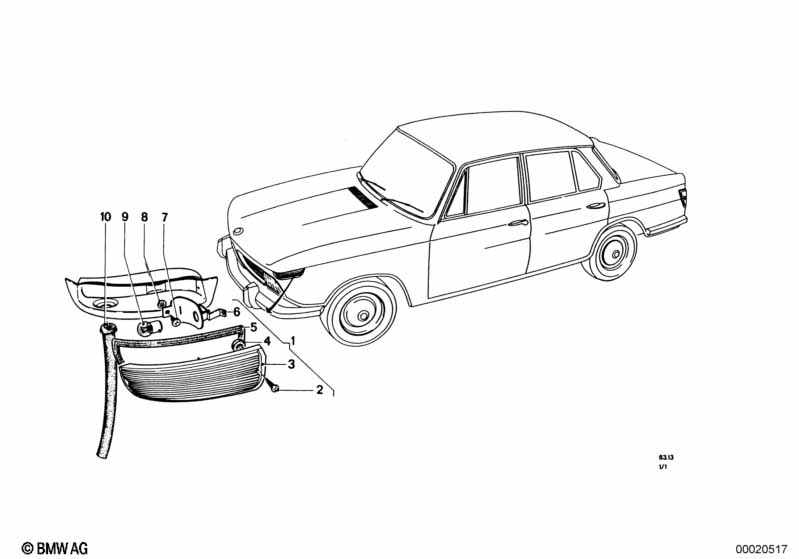

This Front turn indicator technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | 1 | 63131350975 | $310.35 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right turn indicator | 1 | 63131350976 | $310.35 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 01 | Left turn indicator | 1 | 02/1962 | 01/1972 | 63131350991 | ENDED | Shop at ECS Tuning | |||
| 01 | Right turn indicator | 1 | 02/1962 | 01/1972 | 63131350992 | ENDED | Shop at ECS Tuning | |||
| 02 | Set fillister head self-tapping screw 20 | ST3,5X19 | 4 | 07509064376 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 63131350980 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 63131350981 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version USA |
=Yes |
|||||||||
| 06 | Reflector | 2 | 02/1962 | 08/1969 | 63138654152 | ENDED | Shop at ECS Tuning | |||
| 09 | Bulb | P21W/12V/21W | 2 | 01/1966 | 01/1972 | 63217160789 | $1.96 | Shop at ECS Tuning | ||

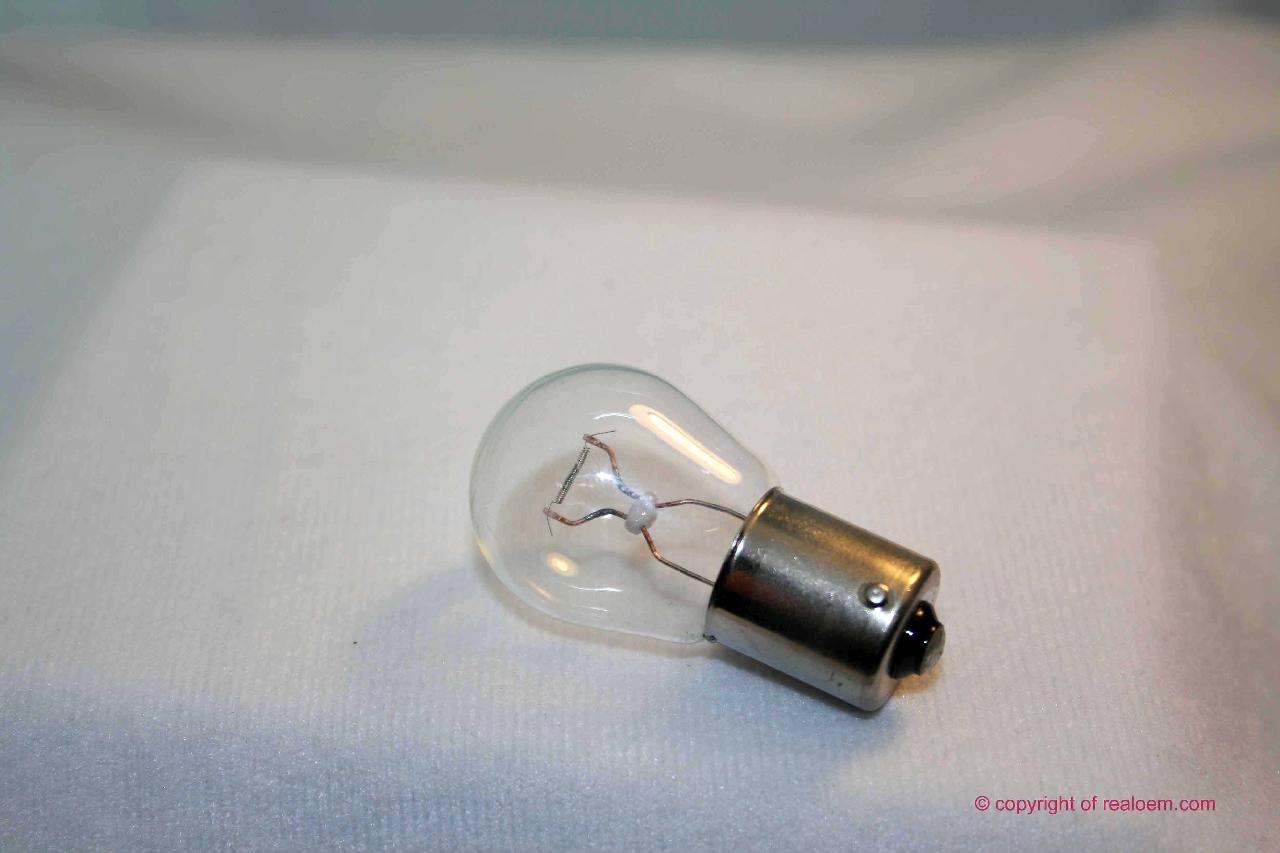

| 09 | Longlife bulb | P21W/12V/21W | 2 | 01/1966 | 01/1972 | 63217160790 | $2.38 | Shop at ECS Tuning | ||

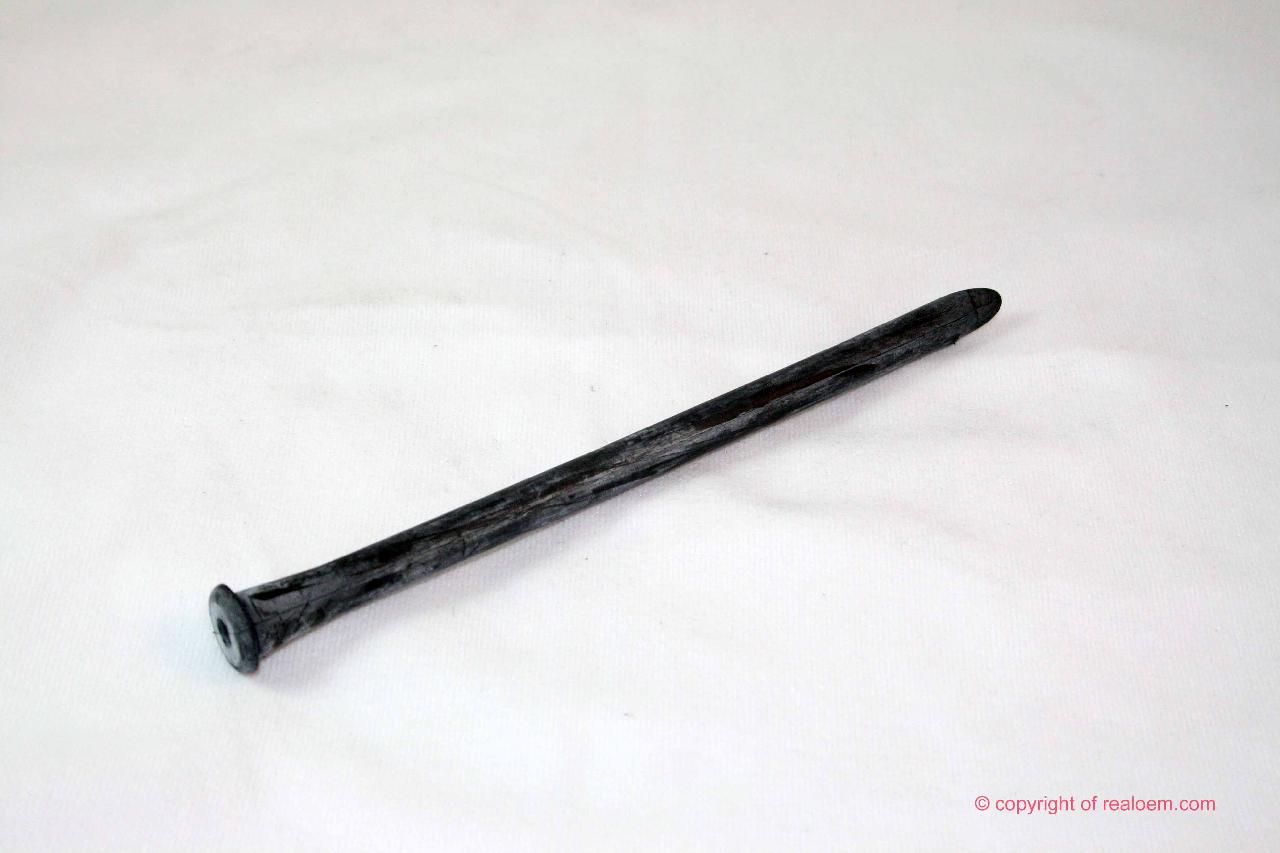

| 10 | Grommet | 2 | 63138654175 | $19.47 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
