Rear light for BMW 1500-2000CS 1800 (1969)

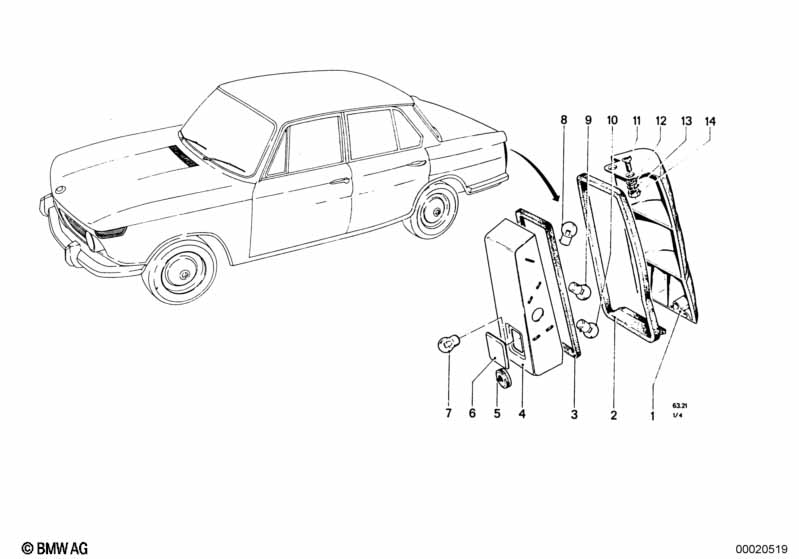

This Rear light technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lens left | ROT-WEISS-ROT | 1 | 63218654109 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lens left | ROT-WEISS-ROT | 1 | 63218654109 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lens right | ROT-WEISS-ROT | 1 | 63218654110 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lens right | ROT-WEISS-ROT | 1 | 63218654110 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket left | 1 | 63218654118 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket left | 1 | 63218654118 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket | 2 | 63218654105 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket | 2 | 63218654105 | ENDED | Shop at ECS Tuning | |||||
| 04 | Housing | 1 | 63218654100 | ENDED | Shop at ECS Tuning | |||||
| 04 | Housing | 1 | 63218654100 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lens | 2 | 63218654106 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lens | 2 | 63218654106 | ENDED | Shop at ECS Tuning | |||||

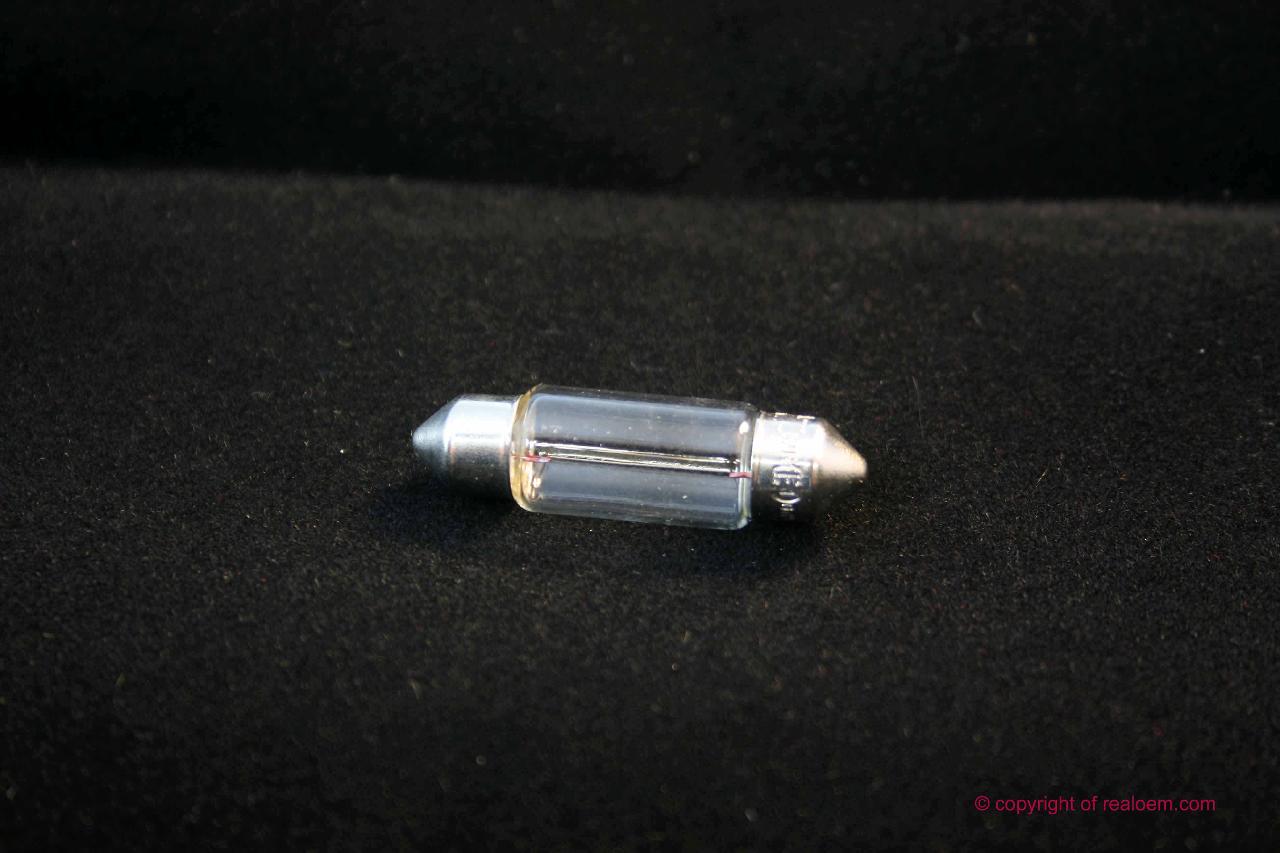

| 07 | Bulb | 12V 5W | 2 | 01/1966 | 03/1971 | 63217160805 | $1.58 | Shop at ECS Tuning | ||

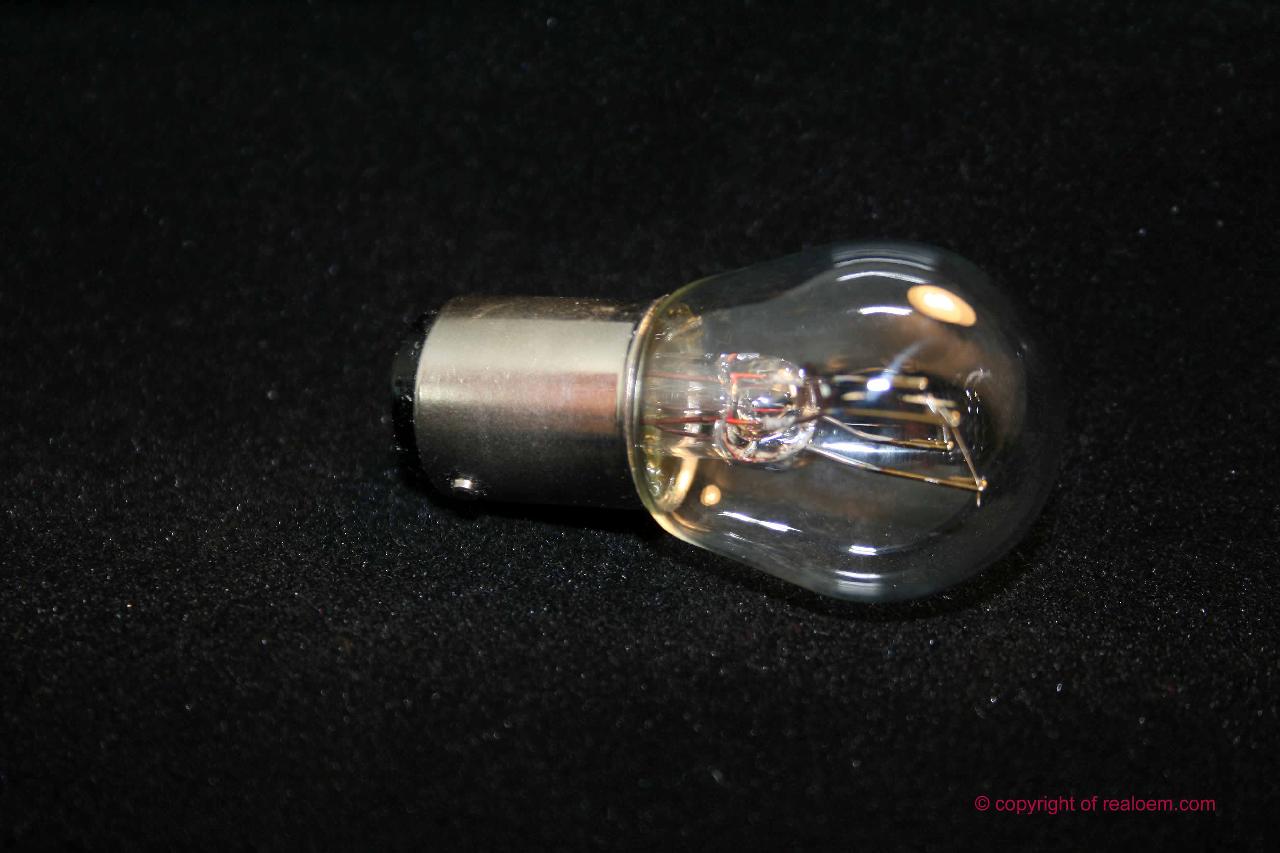

| 08 | Bulb | P21W/12V/21W | 2 | 01/1966 | 03/1971 | 63217160789 | $1.96 | Shop at ECS Tuning | ||
| 08 | Longlife bulb | P21W/12V/21W | 2 | 01/1966 | 03/1971 | 63217160790 | $2.38 | Shop at ECS Tuning | ||
| 09 | Bulb | 12V 15W | 2 | 01/1966 | 03/1971 | 07119978205 | $2.87 | ENDED | Shop at ECS Tuning | |
| 10 | Longlife bulb | 12V 21/5W | 2 | 01/1966 | 03/1971 | 07119905511 | $4.88 | Shop at ECS Tuning | ||
| 10 | Bulb | 12V 21/5W | 2 | 01/1966 | 03/1971 | 63217160793 | $3.92 | Shop at ECS Tuning | ||
| 11 | Countersunk head screw | M5X16-4.8-SW | 4 | 46622313516 | $0.58 | Shop at ECS Tuning | ||||
| 11 | Countersunk head screw | M5X16-4.8-SW | 4 | 46622313516 | $0.58 | Shop at ECS Tuning | ||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Lens left (Part #63218654109).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Lens left (63218654109) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Lens left by locating its position on the schematic, which then links to the official BMW part number 63218654109 for the Lighting section.
