Rear light for BMW 1500-2000CS 1800 (1970)
This Rear light technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lens left | 1 | 01/1966 | 01/1972 | 63218754115 | $112.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Lens right | 1 | 01/1966 | 01/1972 | 63218754116 | $112.59 | ENDED | Shop at ECS Tuning | ||
| 02 | Base | 4 | 63218754120 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket left | 1 | 63211350829 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket right | 1 | 63211350830 | ENDED | Shop at ECS Tuning | |||||
| 04 | Left finisher | 1 | 63211351849 | $47.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right finisher | 1 | 63211351850 | $47.24 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 2 | 63218754119 | ENDED | Shop at ECS Tuning | |||||
| 06 | Reflector left | 1 | 63218754117 | $65.29 | Shop at ECS Tuning | |||||
| 06 | Reflector right | 1 | 63218754118 | $65.29 | Shop at ECS Tuning | |||||
| 08 | Bulb | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 15W | 2 | 07119978205 | $2.87 | ENDED | Shop at ECS Tuning | |||

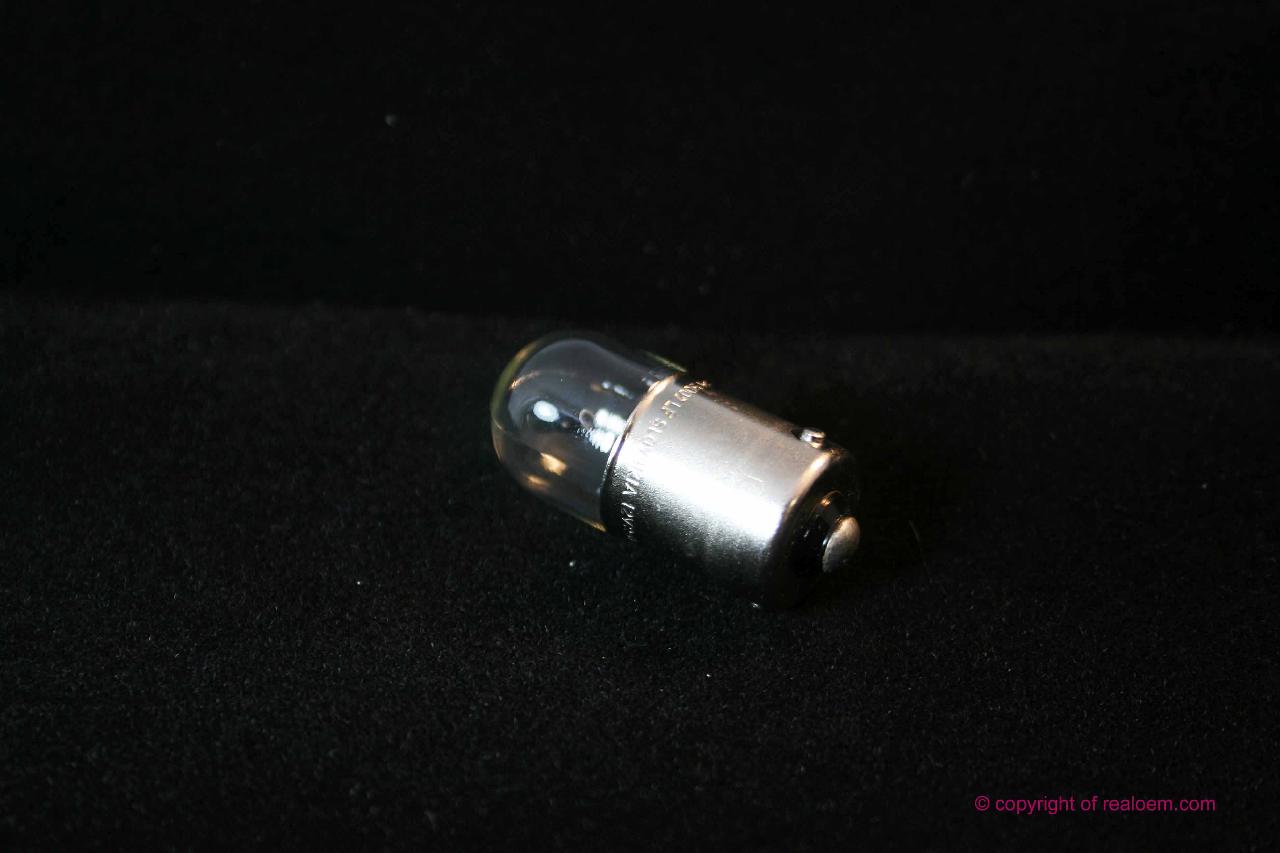

| 10 | Bulb | 12V 5W | 2 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Nut | 8 | 63218654126 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning |
