Rear light for BMW 2500-3.3Li 2800 (1971)

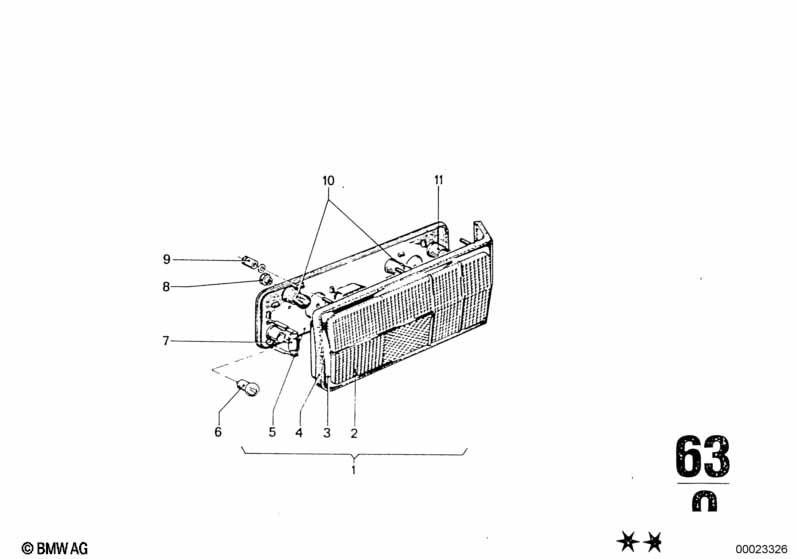

This Rear light technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 63211350699 | $368.28 | Shop at ECS Tuning | |||||
| 01 | Tail light right | 1 | 63211350700 | $368.28 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reflector | LINKS | 1 | 63211350701 | ENDED | Shop at ECS Tuning | ||||
| 02 | Reflector | 1 | 63211350702 | ENDED | Shop at ECS Tuning | |||||
| 03 | Decorative frame left | 1 | 63211350703 | $136.15 | ENDED | Shop at ECS Tuning | ||||
| 03 | Decorative frame right | 1 | 63211350704 | $120.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sealing frame left | 1 | 63211350707 | $39.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sealing frame right | 1 | 63211350708 | $39.03 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 63211350706 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering cap | 1 | 63211351860 | ENDED | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 5W | 2 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 18W | 1 | 07119978311 | $2.03 | ENDED | Shop at ECS Tuning | |||
| 08 | Knurled head nut | M5 | 4 | 63218654122 | $0.90 | ENDED | Shop at ECS Tuning | |||
| 09 | Nut | M 5 | 12 | 63211350710 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bulb | P21W/12V/21W | 6 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 10 | Longlife bulb | P21W/12V/21W | 6 | 63217160790 | $2.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
