Heater for BMW 1500-2000CS 1800 (1969)

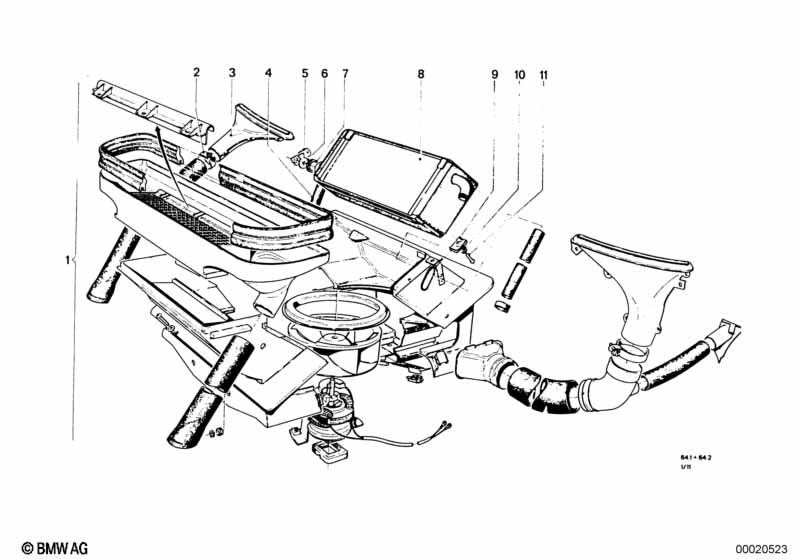

This Heater technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Jet | 1 | 64224774183 | ENDED | Shop at ECS Tuning | |||||
| 04 | Water hose inlet 1 | 1 | 64214774132 | $16.85 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lever | 1 | 64114674165 | ENDED | Shop at ECS Tuning | |||||
| 07 | Rubber seal | 1 | 64114674169 | ENDED | Shop at ECS Tuning | |||||
| 08 | Heater radiator | 1 | 64114674109 | $464.26 | ENDED | Shop at ECS Tuning | ||||
| 09 | Body nut | ST4,8-5 | 4 | 07129901652 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Washer | 10X5,3X1-200 HV | 4 | 07119904206 | Shop at ECS Tuning | |||||
| 10 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,8X19 | 4 | 07119907790 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Heater?
- This technical diagram illustrates the Heater within the Heater and Air Conditioning group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Jet (Part #64224774183).
- Which models use the hardware listed in this Heater?
- The hardware and components featured in the Heater are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Jet (64224774183) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater assembly?
- Each item in the Heater corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Jet by locating its position on the schematic, which then links to the official BMW part number 64224774183 for the Heater and Air Conditioning section.
