Air conditioning for BMW 2500-3.3Li 2500 (1971)

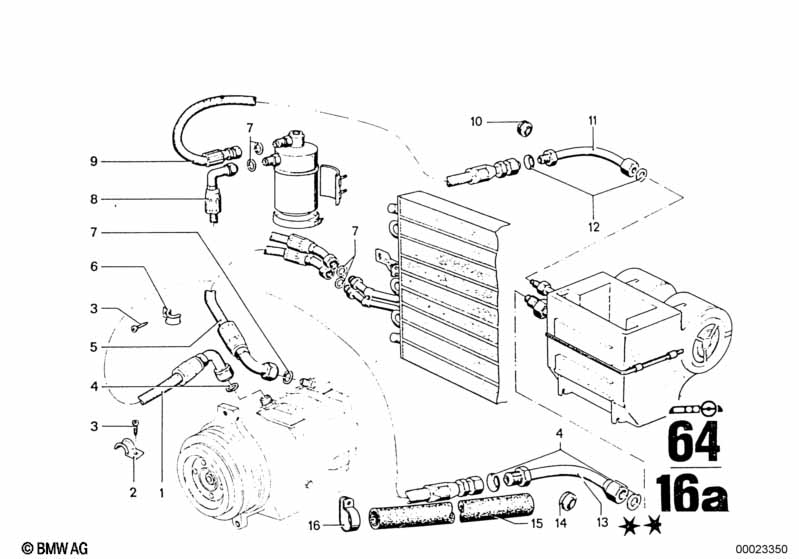

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Special accessories | ||||||||||
| 01 | Hose line | 1 | 64531357707 | $95.99 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose clamp | 1 | 64531352112 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex head screw | B5,5X13 | 1 | 07119916872 | ENDED | Shop at ECS Tuning | ||||
| 04 | Conical ring | D=20MM | 1 | 64531350491 | $1.23 | Shop at ECS Tuning | ||||
| 05 | Hose line | 1 | 07/1969 | 02/1977 | 64531357708 | $149.54 | ENDED | Shop at ECS Tuning | ||
| 06 | Hose clamp | 1 | 64531352112 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket | 3/4" | 1 | 64531350489 | $3.08 | Shop at ECS Tuning | ||||
| 08 | Hose line | 1 | 07/1969 | 02/1977 | 64531358445 | ENDED | Shop at ECS Tuning | |||
| 09 | Hose line | 1 | 07/1969 | 02/1977 | 64531358445 | ENDED | Shop at ECS Tuning | |||
| 10 | Rubber grommet | 1 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 11 | Pipe | 1 | 64531358409 | ENDED | Shop at ECS Tuning | |||||
| 12 | Gasket | 5/8" | 1 | 64531350490 | $3.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Grommet | 1 | 64214774143 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cup | 1 | 64531355361 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hose clamp | 1 | 64531355160 | ENDED | Shop at ECS Tuning | |||||
