Air conditioning for BMW 2500-3.3Li 2500 (1971)

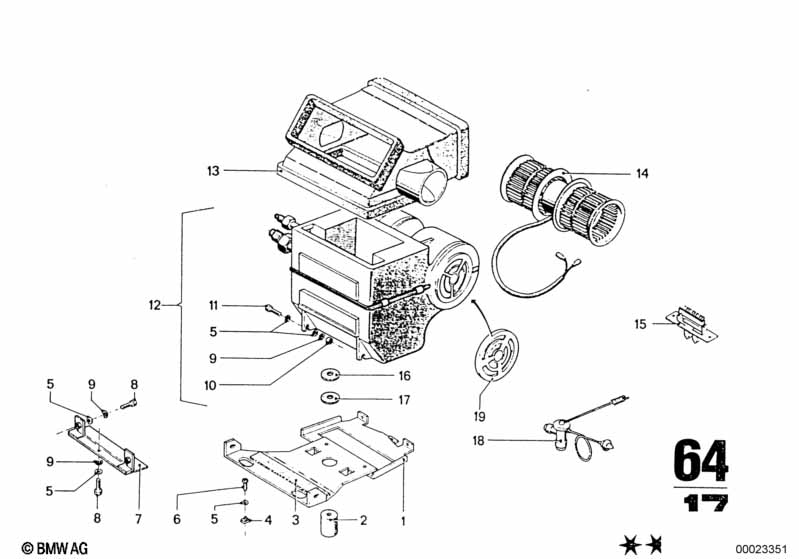

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base plate | 1 | 64511351788 | ENDED | Shop at ECS Tuning | |||||
| 02 | Washer-gasket | 3 | 64511352344 | ENDED | Shop at ECS Tuning | |||||
| 03 | Felt strip | X | 64511372091 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Washer | 10X5,3X1-200 HV | 12 | 07119904206 | Shop at ECS Tuning | |||||
| 05 | Washer | 5.3-140 HV-ZNS | 12 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X13 | 4 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 64511351936 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M5X12-8.8 ZN | 4 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B5 | 6 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M5X16 | 2 | 07119913241 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 12 | Evaporator | 1 | 64511367469 | ENDED | Shop at ECS Tuning | |||||
| 13 | Intermediate piece | 1 | 64501352076 | $44.50 | ENDED | Shop at ECS Tuning | ||||
| 14 | Blower unit | 1 | 64511356015 | $451.80 | ENDED | Shop at ECS Tuning | ||||
| 14 | Blower unit | 1 | 64511377752 | $164.05 | ENDED | Shop at ECS Tuning | ||||
| 15 | Resistor | 1 | 64511352023 | $13.84 | ENDED | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 1 | 64511352063 | ENDED | Shop at ECS Tuning | |||||
| 17 | Rubber seal | 1 | 64511352205 | $3.43 | ENDED | Shop at ECS Tuning | ||||
| 18 | Expansion valve | 1 | 64511354379 | $90.10 | ENDED | Shop at ECS Tuning | ||||
| 19 | Frame | 2 | 64511352019 | $7.71 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
