Air conditioning for BMW 2500-3.3Li 2500 (1971)

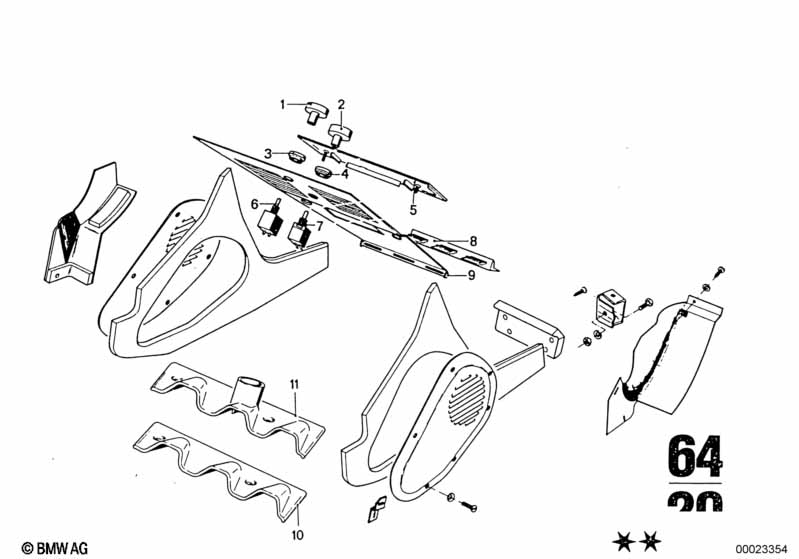

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Knob temperature | 1 | 08/1968 | 02/1977 | 64511352037 | $5.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Knob temperature | 1 | 08/1968 | 02/1977 | 64511352036 | ENDED | Shop at ECS Tuning | |||
| 03 | Ring nut | 1 | 65111351267 | ENDED | Shop at ECS Tuning | |||||
| 04 | Ring nut | 1 | 64511352089 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 51161806995 | $19.53 | ENDED | Shop at ECS Tuning | ||||
| 06 | Switch | 1 | 08/1968 | 02/1977 | 64511352042 | $61.38 | ENDED | Shop at ECS Tuning | ||

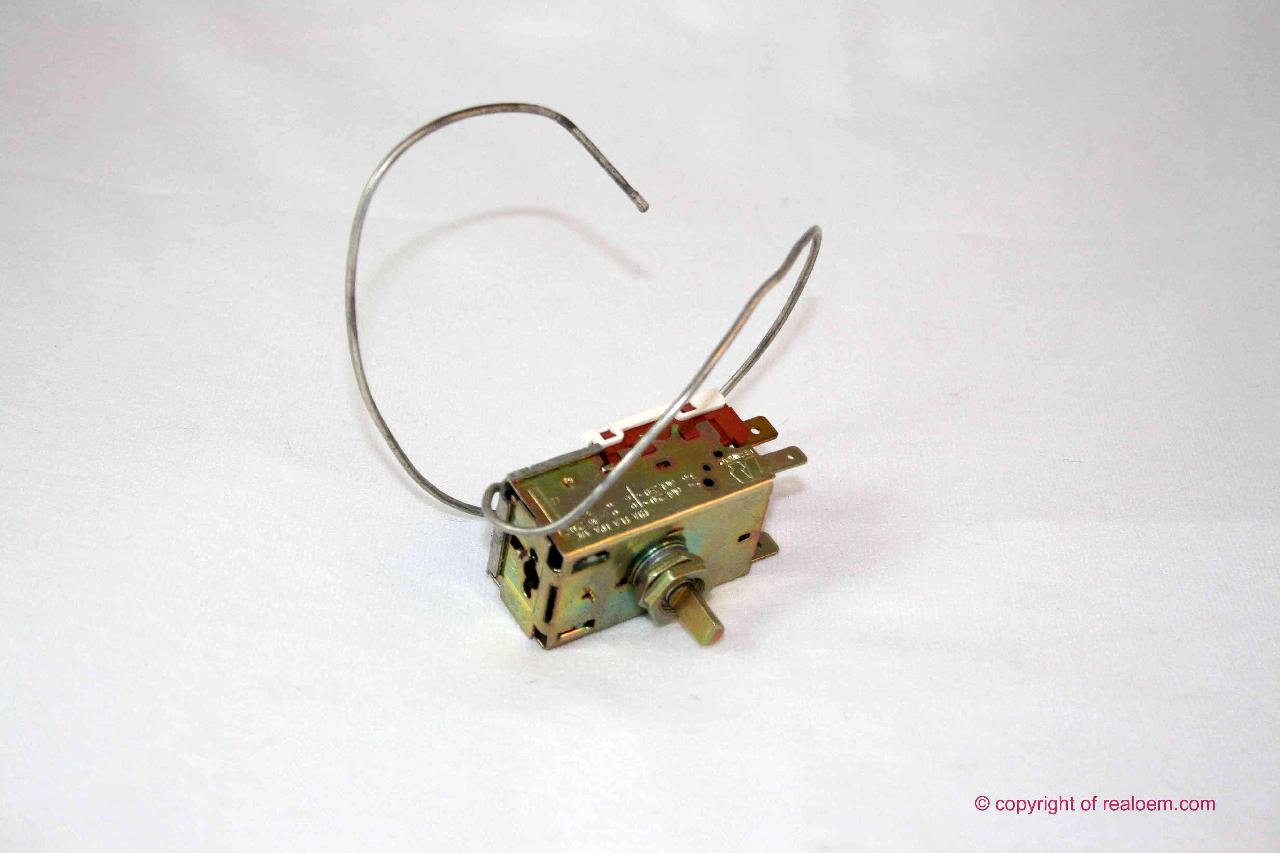

| 07 | Temperature switch | 1 | 64511386318 | $72.93 | Shop at ECS Tuning | |||||
| 08 | Covering piece | 1 | 08/1968 | 02/1977 | 51161805989 | $5.19 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
